Check outside of vehicle in visible area for signs of damage - AP60.00-P-0050EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0, 205.0, 212.0, 218.3

Shown on model 212.0

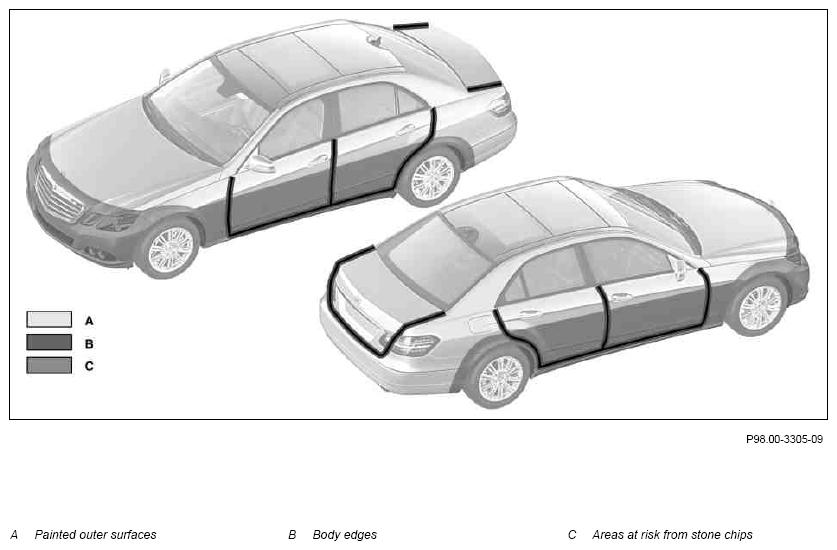

Fig 1: Checking Vehicle In Visible Area For Signs Of Damage - Show On Model 212.0

Courtesy of MERCEDES-BENZ USA

	Damage and stress caused to paintwork by external influences		AH98.00-P-8070-02A
	Check
1	Check vehicle body and detachable parts for damage and completeness	Dents/deformation Component missing Cracks/scratches Other damage If there are problems: if necessary, subject to separate repair order, clear the damage.
2	Check vehicle paintwork for damage and check vehicle body for corrosion	The main complaints are in the areas of the body edges (B) and areas (C) subject to stone chippings. Damage to the vehicle paintwork are, e.g.: Stone chipping Scratch Environmental influence Paint peeling off If there are problems: Proceed in accordance with the country-specific regulations for mobility and body shell complaints subject to separate repair order.
		MODEL 204.0	OF98.00-P-3000-01PA
		MODEL 205.0	OF98.00-P-3000-01V
		MODEL 212.0	OF98.00-P-3000-01PE
		MODEL 218.3	OF98.00-P-3000-01GC
3	Check exterior lights glazing for damage	Water entry Reflector not functioning Component missing Corrosion Cracks/scratches Other damage If there are problems: if necessary, subject to separate repair order, clear the damage.
