Tightening procedure for crankshaft bearing caps - AR03.20-P-4351-02SX

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 273

CRANKSHAFT BEARING CAP

Number	Designation				Engine 273
BA03.20-P-1001-01D	Bolt for crankshaft bearing cap	M8	Stage 1	Nm	20
BA03.20-P-1001-01D	Bolt for crankshaft bearing cap	M8	Stage 2	∠°	90
BA03.20-P-1002-01D	Side crankshaft bearing cap bolt	M8	Stage 1	Nm	20
BA03.20-P-1002-01D	Side crankshaft bearing cap bolt	M8	Stage 2	∠°	90
BA03.20-P-1003-01D	Bolt for crankshaft bearing cap	M10	Stage 1	Nm	5
			Stage 2	Nm	30
			Stage 3	∠°	90

Lubricate bolts (1 to 30) of crankshaft bearing cap and the crankshaft fitted bearing cap on thread and bolt head contact surface.

Tighten bolts (1 to 30) in the numbering sequence.
The arrow indicates the direction of travel.

If no torquing angle wrench is available at the final tightening stage, the bolts can be turned further using a socket wrench and locking handle all in a single operation. Do not use a flexi-rod torque wrench for tightening in order to avoid any angle errors.

To loosen the bolts (1 to 30), proceed in reverse order.

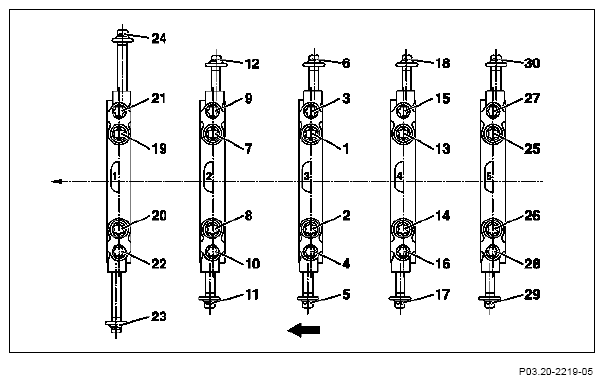

Fig 1: Crankshaft Bearing Cap Bolts Tightening Sequence - Shown On Engine 273

Courtesy of MERCEDES-BENZ USA
