Removing/installing oil deflector plate - AR03.10-P-7021-01SX

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272, 273

OIL PUMP

Number Designation Engine 272 Engine 273
BA18.10-P-1006-01B Bolt for oil baffle on crankcase Nm 9 9

Shown on engine 273

  1. Unscrew bolts (1).
  2. Remove oil baffle (2) from crankcase.
  3. Install in the reverse sequence.

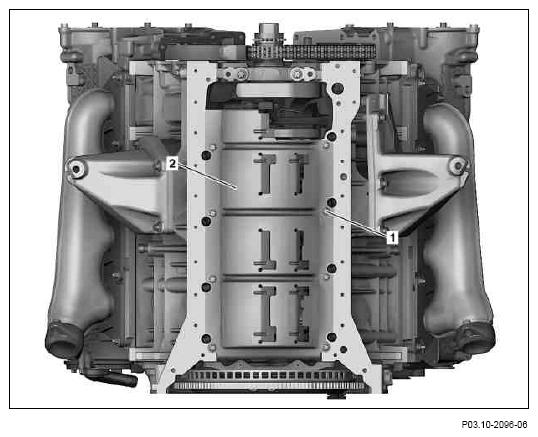

    Fig 1: Crankcase Oil Baffle And Bolts
    G10240582Courtesy of MERCEDES-BENZ USA
