Remove/install piston rings - AR03.10-P-7311FH
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276 in MODEL 172, 204, 207, 212, 218
| Remove | |||

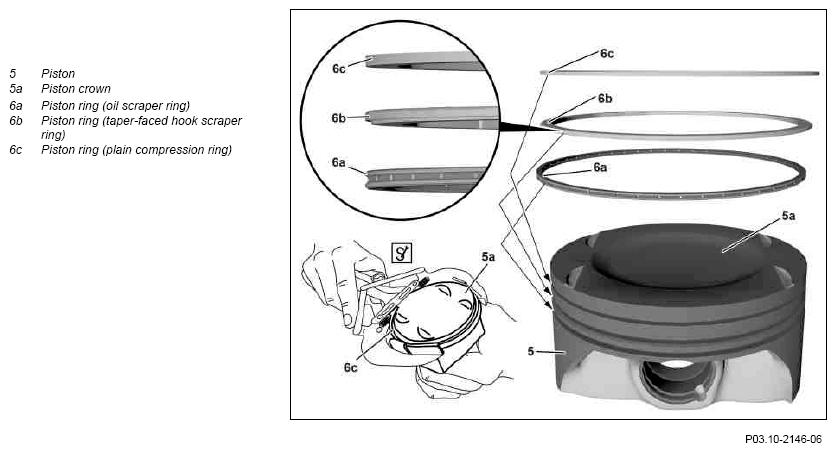

| 1 | Remove piston (5) | AR03.10-P-7021FH | |
| 2 | Take off plain compression ring (6c) with piston ring pliers | Figure | |
| 3 | Take off taper-faced hook scraper ring (6b) with piston ring pliers | Figure | |
| 4 | Remove oil scraper ring (6) by hand | ||
| Install | |||
| 5 | Mount oil scraper ring (6a) by hand | ||
| 6 | Install taper-faced hook scraper ring (6b) with piston ring pliers | ||
| Figure | |||
| 7 | Install plain compression ring (6c) with piston ring pliers | ||
| Figure | |||
| 8 | Offset piston ring end gaps for piston ring (6a, 6b, 6c) by 120 0 degrees respectively on the circumference of the piston (5) | ||
| 9 | Install piston (5) | AR03.10-P-7021FH |
