Determine crankshaft bearing axial play - AR03.20-P-4291-03MM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 152, 157, 276, 278
ENGINE 157
TEST SPECIFICATIONS FOR CRANKSHAFT BEARING CLEARANCE
| Number | Designation | Engine 152 | Engine 157 | ||
|---|---|---|---|---|---|
| BE03.20-P-1001-04E | Main bearing play | Radial measurement when new | mm | 0, 022...0, 046 | 0, 022...0, 046 |
| Axial measurement when new | mm | 0, 140...0, 280 | 0, 140...0, 280 | ||
TEST SPECIFICATIONS FOR CRANKSHAFT BEARING CLEARANCE
| Number | Designation | Engine 276 | Engine 278 | ||
|---|---|---|---|---|---|
| BE03.20-P-1001-04E | Main bearing play | Radial measurement when new | mm | 0, 022...0, 046 | 0, 022...0, 046 |
| Axial measurement when new | mm | 0, 140...0, 280 | 0, 140...0, 280 | ||

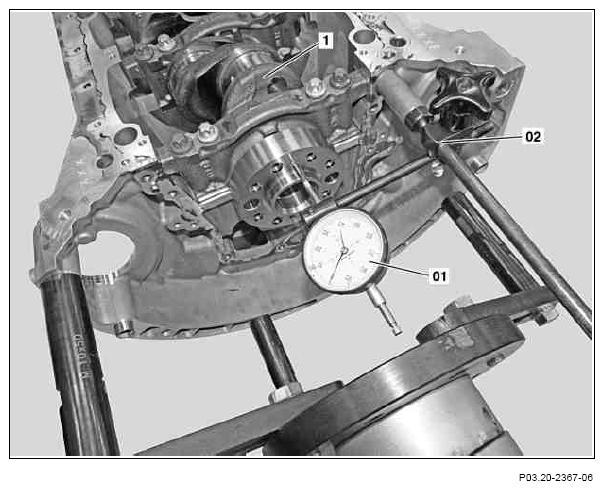

The following special tool is used:
dial indicator holder (02),
dial indicator (01)
- Mount dial indicator holder (02) on crankcase.
- Insert dial indicator (01) in dial indicator holder (02) and set a pretension of at least 3 mm.
The measuring tip of the dial indicator (01) must be aligned in a right angle to the crankshaft flange.
- Press on crankshaft (1) in an axial direction to one side up to the attachment and hold.
- Set dial indicator scale to zero.
- Press on crankshaft (1) in an opposite axial direction to one side up to the attachment and hold.
- Read off measurement value on dial indicator (01) scale and compare with specified value.
