Assign piston to the cylinder bore - AR03.10-P-7021-03MM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 157, 276, 278

ENGINE 157

Assign piston to the cylinder bore.
Piston diameters are specified in two tolerances. The piston diameters are distinguished from each other by an X or Z marking. This is located on the top of the piston crown. Pistons marked with X must only be installed in cylinder bores marked with X . Pistons marked with Z must only be installed in cylinder bores marked with ⓧ.

Fig 1: Piston Crown Identification Mark
Courtesy of MERCEDES-BENZ USA

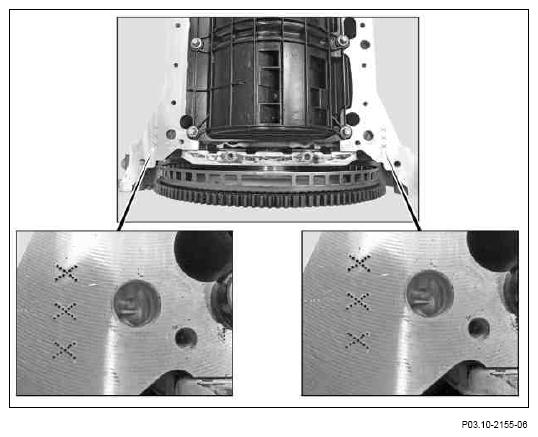

Shown: crankcase with standard pistons

Fig 2: Mark For Piston Diameter - Shown On Crankcase With Standard Pistons

Courtesy of MERCEDES-BENZ USA

Cylinder bore diameters are specified in two tolerances. Cylinder bore diameters are distinguished from each other by an X or ⓧ. These are located on the crankcase in the area of the oil pan sealing surface.

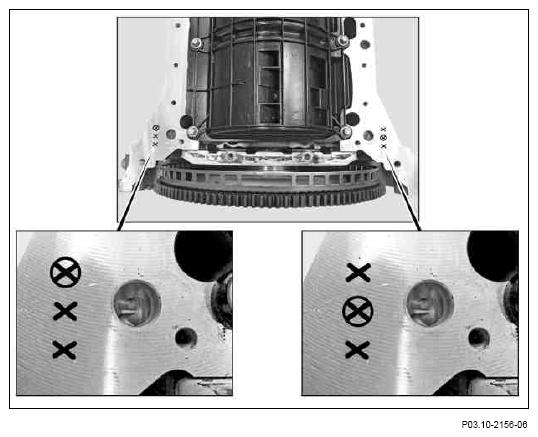

Shown: crankcase with two oversize pistons and four standard pistons

Fig 3: Mark For Piston Diameter - Shown On Crankcase With Two Oversized Pistons

Courtesy of MERCEDES-BENZ USA
