Power flow in 5th gear, function - GF27.10-P-3015AHO
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 724.2 in MODEL 212
Function requirements for power flow in 5th gear, general
- Circuit 87 (connected circuit 15) ON
- Internal combustion engine running and/or electric machine (A79/1) ON

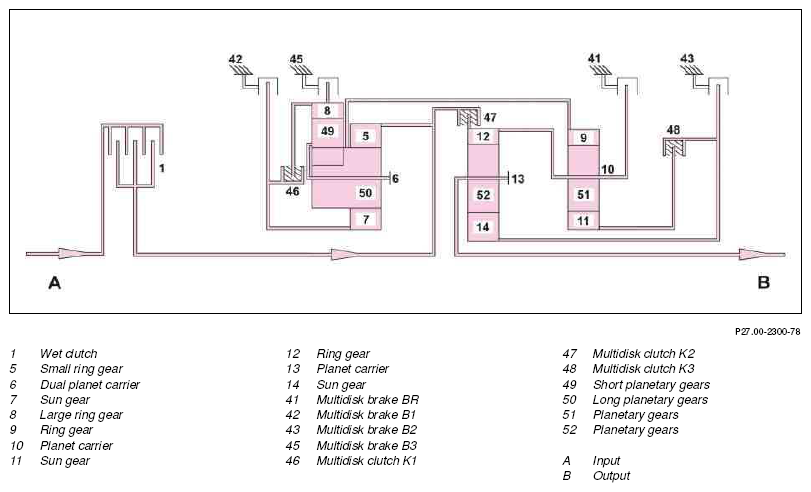

Power flow in 5th gear, general
The following multidisk clutches are engaged:
- Multidisk clutch K1 (46)
- Multidisk clutch K2 (47)
- Multidisk clutch K3 (48)
In 5th gear, power flows from the transmission input shaft through the blocked Ravigneaux gear set and blocked front single planetary gear set to the transmission output shaft. This rotates at the transmission input speed in the direction of rotation of the engine.
