Power flow in 3rd gear, function - GF27.10-P-3013AHL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 722.9 (except 722.930/931) in MODEL 212

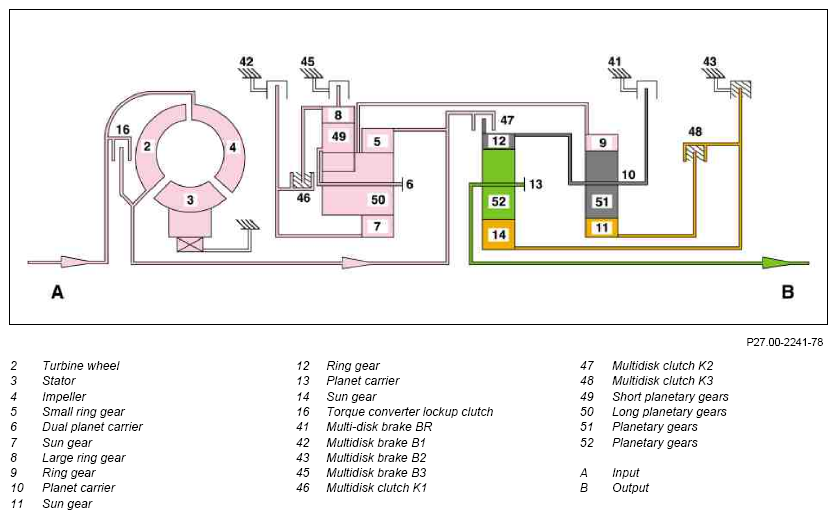

Fig 1: Transmission Function Diagram - 3rd Gear

Courtesy of MERCEDES-BENZ USA

Function requirements for power flow in 3rd gear, general

Circuit 87 ON
Engine running

Power flow in 3rd gear, general

The following multi-disk brakes and multi-disk clutches are engaged:

Multidisk brake B2 (43)
Multidisk clutch K1 (46)
Multidisk clutch K3 (48)

Power flow in 3rd gear takes place via the following gear sets:

Ravigneaux gear set
Rear single planetary gear set
Front single planetary gear set

Ravigneaux gear set

Due to the engaged multi-disk clutch K1 (46) the components of the Ravigneaux gear set are locked together and pass on the transmission input torque and transmission input speed unchanged to the ring gear (9).

Rear single planetary gear set

The ring gear (9) drives the planetary gears (51). These roll over the stalled sun gear (11) and transmit the rotary motion to the planet carrier (10).

Front single planetary gear set

The ring gear (12) has a mechanical connection to the planet carrier (10) and rotates at the same speed. The planetary gears (52) roll on the stalled sun gear (14) and transfer the increased torque and reduced rotational speed to the transmission output shaft via the planet carrier (13). The transmission output shaft thus rotates with reduced transmission input speed in the direction of rotation of the engine.
