Overview of system components for automatic transmission (AT) - GF27.10-P-9992ANA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 725.0 in MODEL 212

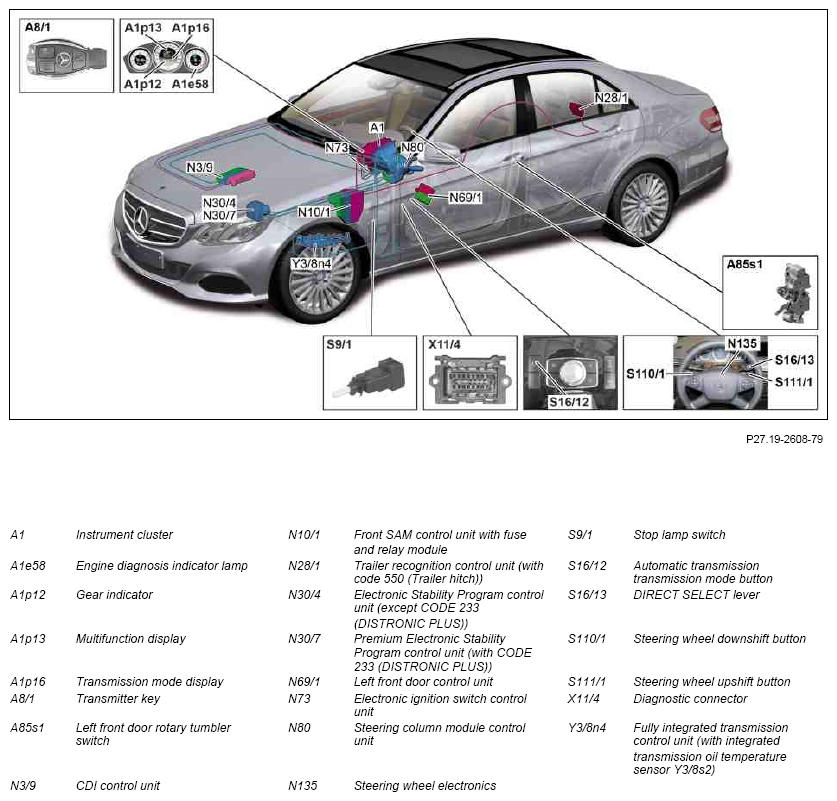

Vehicle phantom view

Fig 1: Overview Of System Components For Automatic Transmission

Courtesy of MERCEDES-BENZ USA

Sectional view of automatic transmission with torque converter and integrated centrifugal pendulum

Fig 2: Sectional View Of Automatic Transmission With Torque Converter And Integrated Centrifugal Pendulum

Courtesy of MERCEDES-BENZ USA

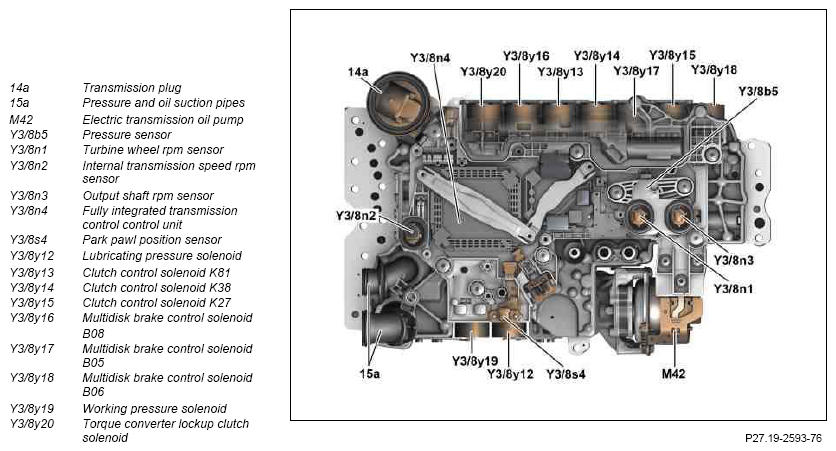

View of fully integrated transmission control controller unit (Y3/8)

Fig 3: View Of Fully Integrated Transmission Control Controller Unit (Y3/8)

Courtesy of MERCEDES-BENZ USA

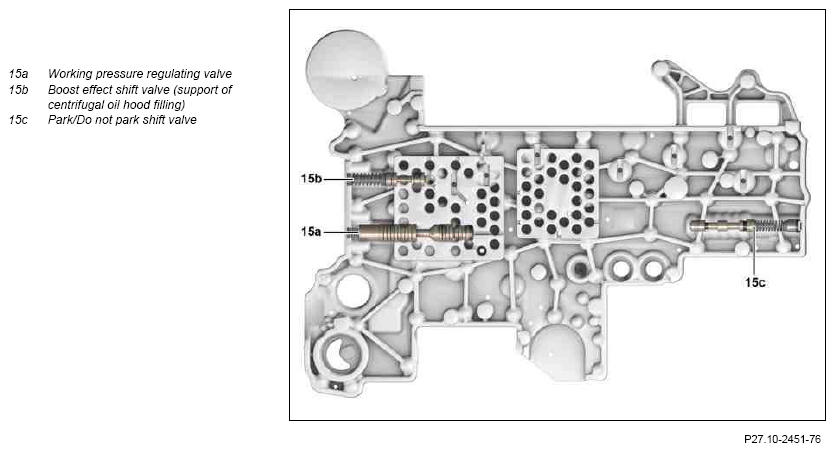

Top view of valve body

Fig 4: Top View Of Valve Body

Courtesy of MERCEDES-BENZ USA

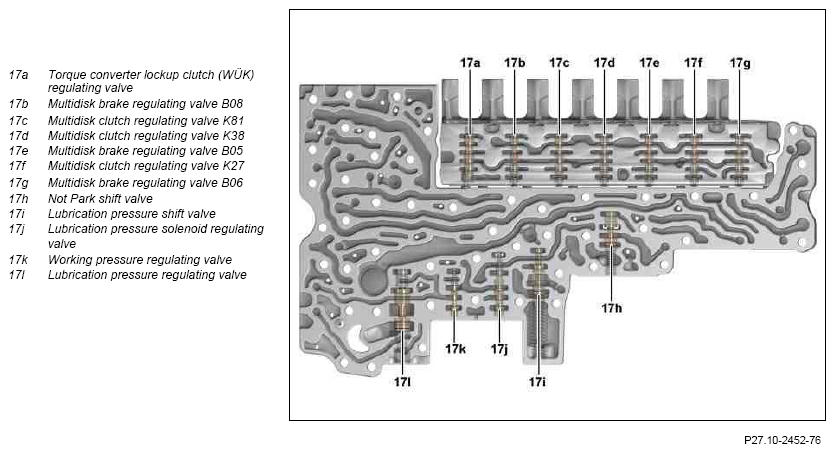

View of valve housing

Fig 5: View Of Valve Housing

Courtesy of MERCEDES-BENZ USA

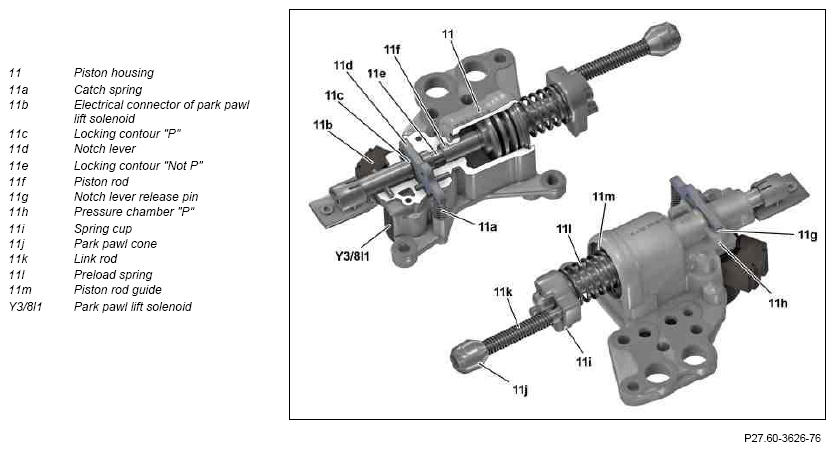

Parking lock actuation components

Fig 6: Parking Lock Actuation Components

Courtesy of MERCEDES-BENZ USA

Phantom view of automatic transmission from left rear (shown with gear range "P" engaged)

Fig 7: Park Pawl Gear, Detent, Bushing, Pawl Cone & Detent Spring

Courtesy of MERCEDES-BENZ USA

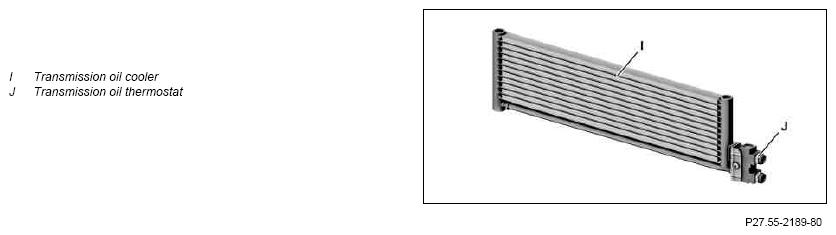

View of transmission cooler

Fig 8: Transmission Oil Cooler & Thermostat

Courtesy of MERCEDES-BENZ USA

Component description for instrument cluster	A1, A1e58, A1p12, A1p13, A1p16	GF54.30-P-6000FL
Component description for CDI control unit	TRANSMISSION 725.0 in MODEL 212 with ENGINE 642.8 N3/9	GF07.16-P-6000OG
	MODEL 212 (except 212.098/298) with ENGINE 651.9 with TRANSMISSION 725.0 Delphi N3/9	GF07.16-P-6000OM
	MODEL 212 (except 212.098/298) with ENGINE 651.9 as of 9/1/13 with TRANSMISSION 725.0 with CODE 494 (US version) Bosch N3/9	GF07.16-P-6000OMD
Component description for front SAM control unit with fuse and relay module	N10/1	GF54.21-P-6070FL
Component description for trailer recognition control unit	MODEL 212 with TRANSMISSION 725.0 with CODE 550 (Trailer coupling) N28/1	GF31.19-P-4050FL
Component description for Electronic Stability Program control unit	MODEL 212 (except 212.095/098/298) with TRANSMISSION 725.0 up to model year 2014 N30/4, N30/7	GF42.45-P-5119FL
	MODEL 212 (except 212.095/098/298) with TRANSMISSION 725.0 as of model year 2014 N30/4, N30/7	GF42.45-P-5119FLM
Component description for left front door control unit	N69/1	GF72.29-P-6001FL
Component description for the electronic ignition lock control unit	N73	GF80.57-P-6001FL
Component description for steering column tube module control unit	N80	GF54.21-P-6051FL
Component description for fully integrated transmission control unit	Y3/8n4	GF27.60-P-5165ANA
Automatic transmission (AT), contents, function description	TRANSMISSION 725.0 in Model 212	GF27.10-P-0999ANA
