Automatic transmission hybrid drive, location of electrical components/electronic components - GF27.10-P-0002-03AHO
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 724.2 in MODEL 212

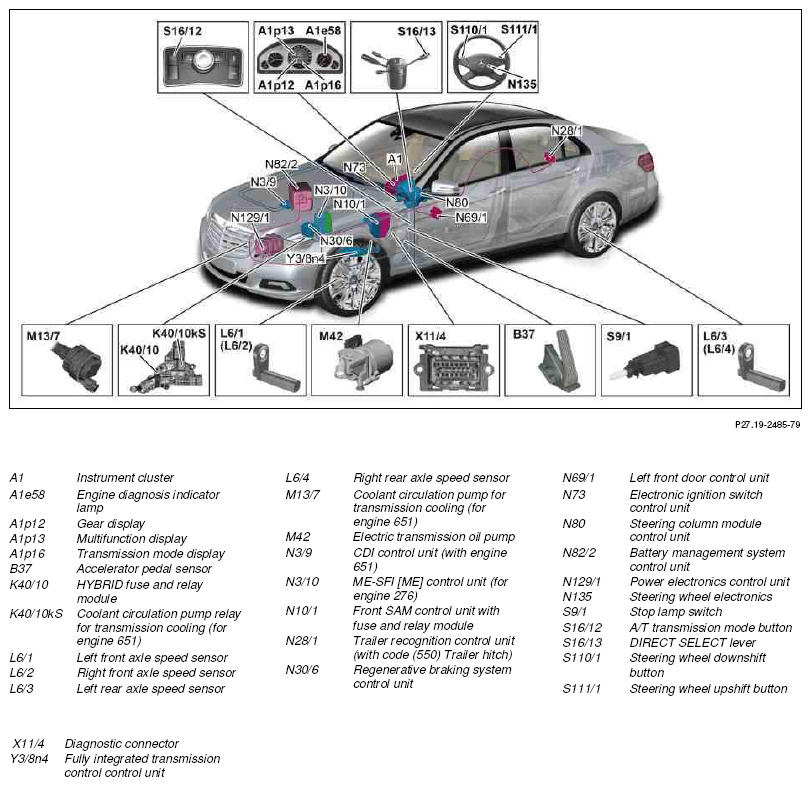

Vehicle phantom view

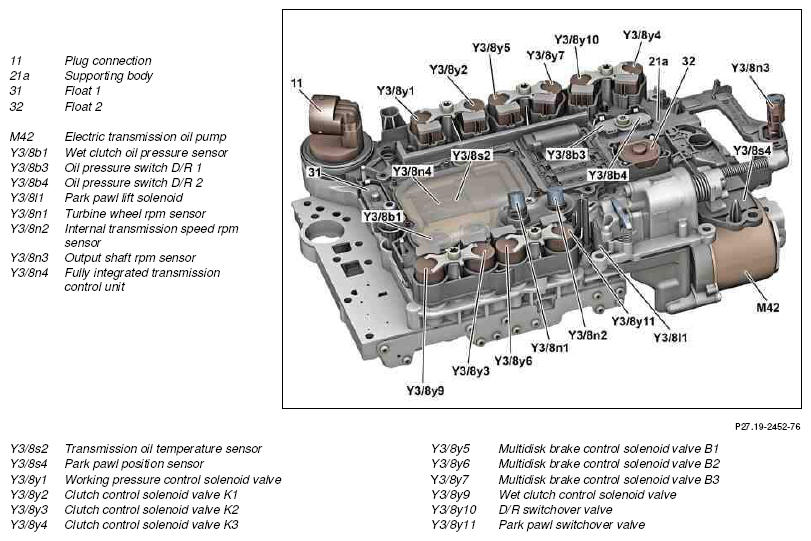

View of fully integrated transmission control controller unit (Y3/8) from above
