Automatic transmission (AT), location of mechanical components - GF27.10-P-0001-07AHX

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 722.930 up to 31.5.11, 722.931 as of 1.6.11 in MODEL 212.0 /2

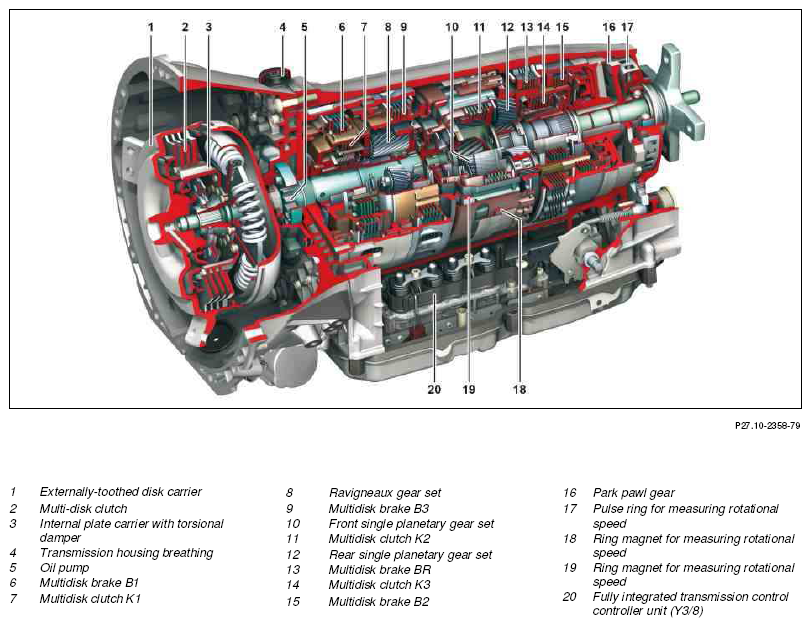

Sectional view of automatic transmission (with code (B03) ECO start/stop function)

Fig 1: Sectional View Of Automatic Transmission - With Code B03
G10242252Courtesy of MERCEDES-BENZ USA
