Automatic transmission (AT), location of mechanical components - GF27.10-P-0001-07AHL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 722.9 (except 722.930 /931) in MODEL 212

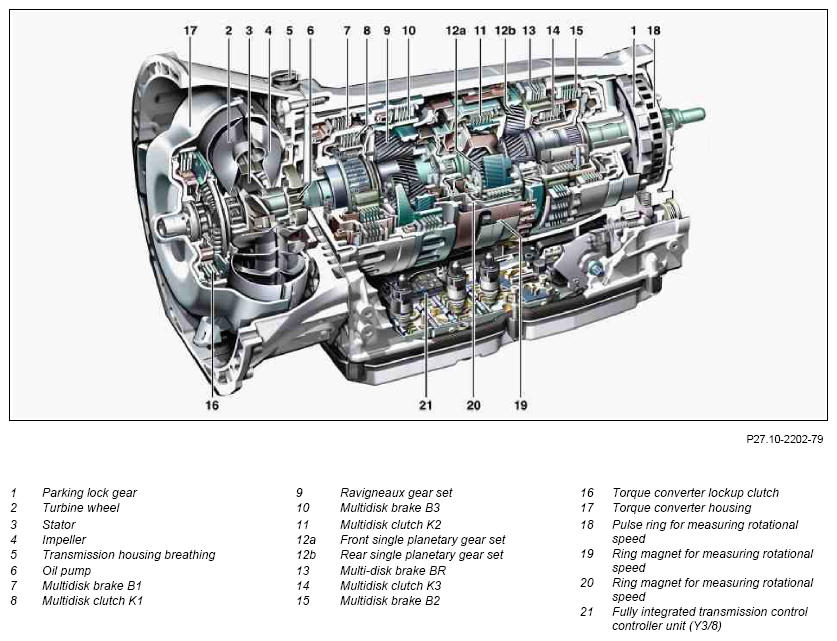

Sectional view of automatic transmission

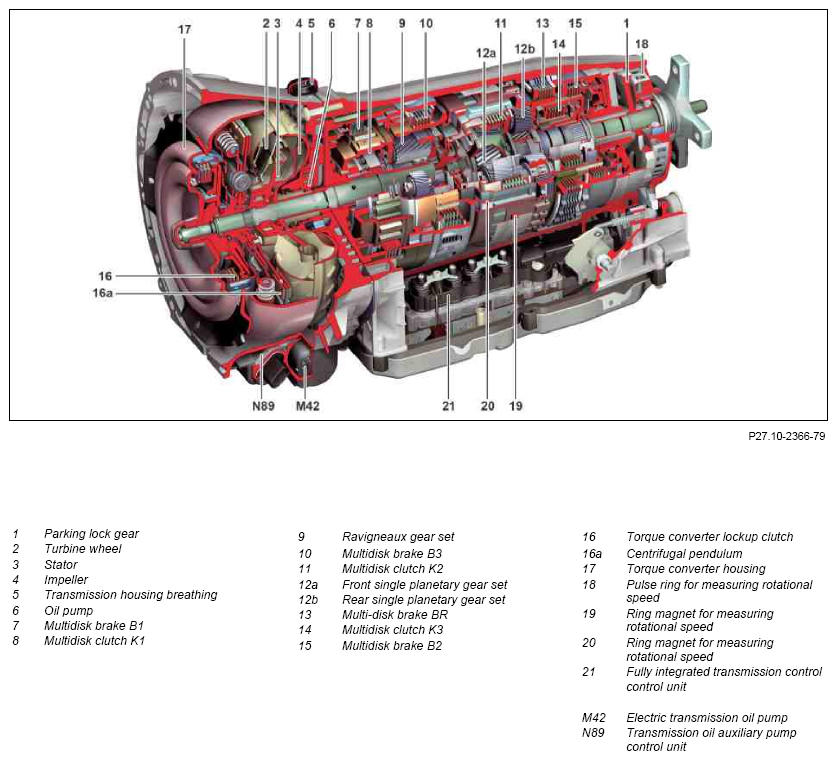

Sectional view of automatic transmission with torque converter and integrated centrifugal pendulum (with code (B03) ECO start/stop function)

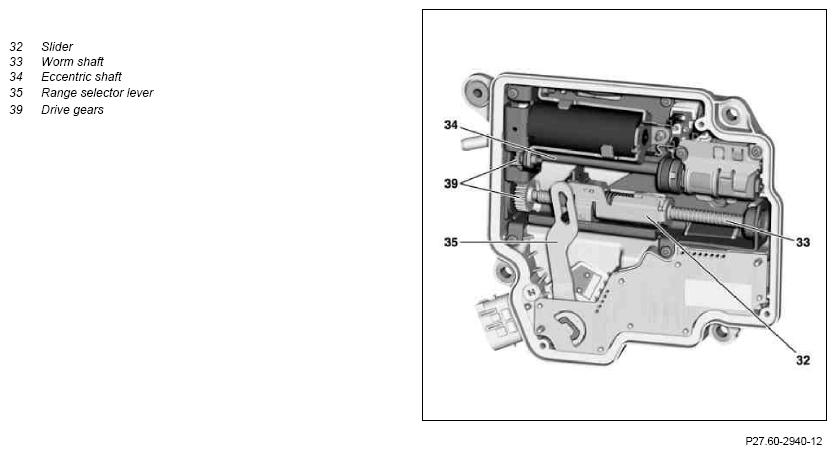

Rear view of intelligent servo module for DIRECT SELECT (A80)
