Automatic transmission (AT), location of electric/electronic components - GF27.10-P-0001-08AHX

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 722.930 up to 31.5.11, 722.931 as of 1.6.11 in MODEL 212.0 /2

Shown on model 212.0 up to YoM 11

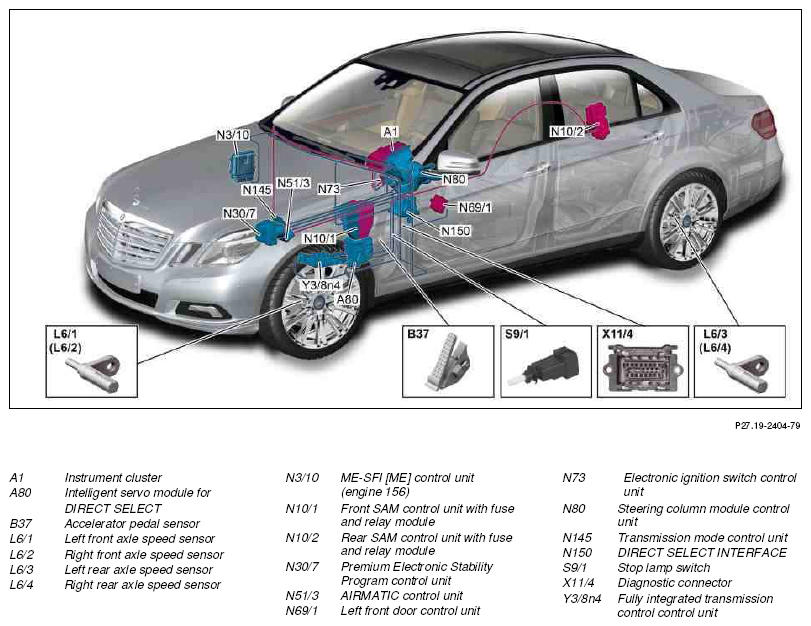

Fig 1: Automatic Transmission Electric/Electronic Components - Shown On Model 212.0 Up To YoM 11

Courtesy of MERCEDES-BENZ USA

Shown on model 212.0 as of YoM 11

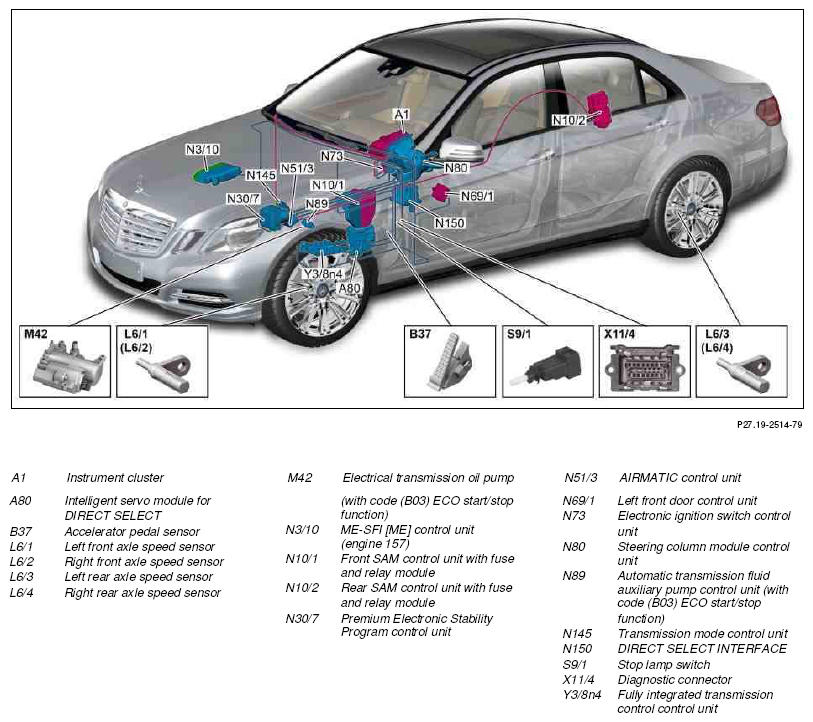

Fig 2: Automatic Transmission Electric/Electronic Components - Shown On Model 212.0 As Of YoM 11

Courtesy of MERCEDES-BENZ USA

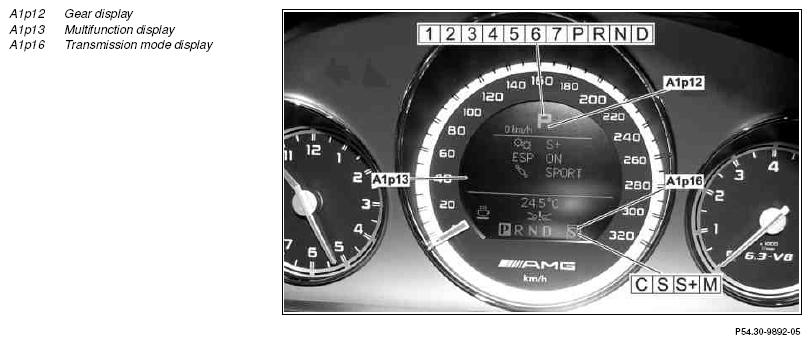

Fig 3: Display - Transmission Mode Screen

Courtesy of MERCEDES-BENZ USA

The upshift steering wheel gearshift button is on the rear of the multifunction steering wheel (MFL) on the right. The downshift steering wheel gearshift button (S110/1) is on the rear of the multifunction steering wheel (MFL) on the left.

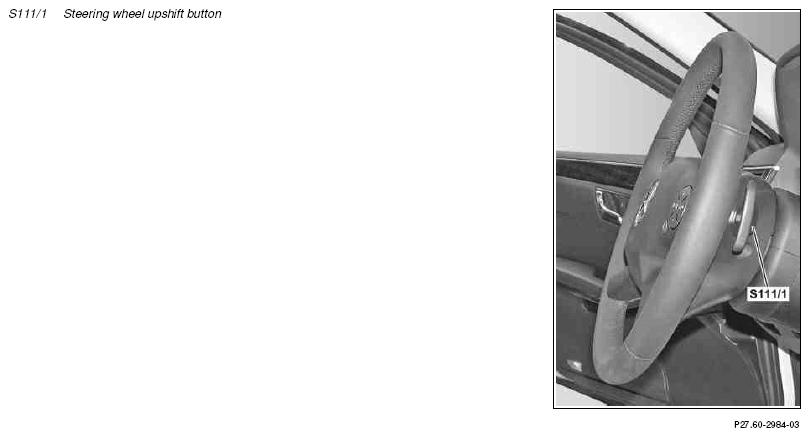

Fig 4: Steering Wheel Upshift Button

Courtesy of MERCEDES-BENZ USA

View of center console, shown as of YoM 11

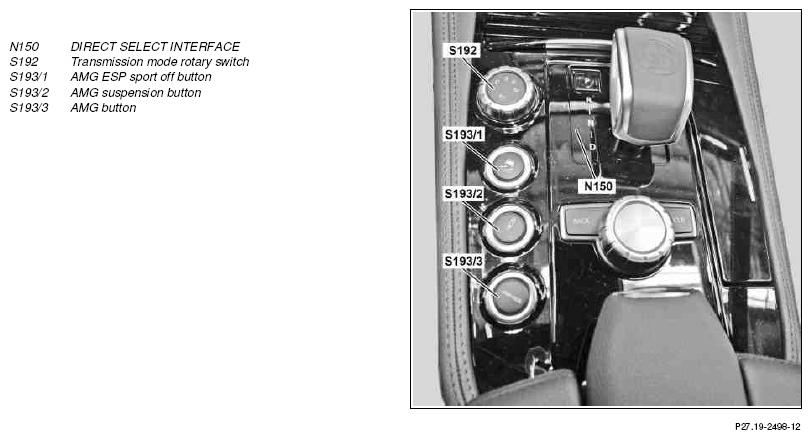

Fig 5: View Of Center Console

Courtesy of MERCEDES-BENZ USA

Underside of step plate of front passenger footwell

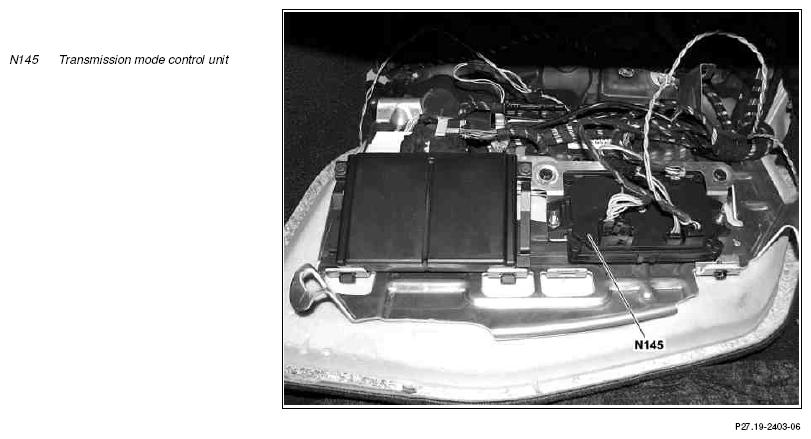

Fig 6: Transmission Mode Control Unit

Courtesy of MERCEDES-BENZ USA

Fully integrated transmission control controller unit (Y3/8) viewed from front left

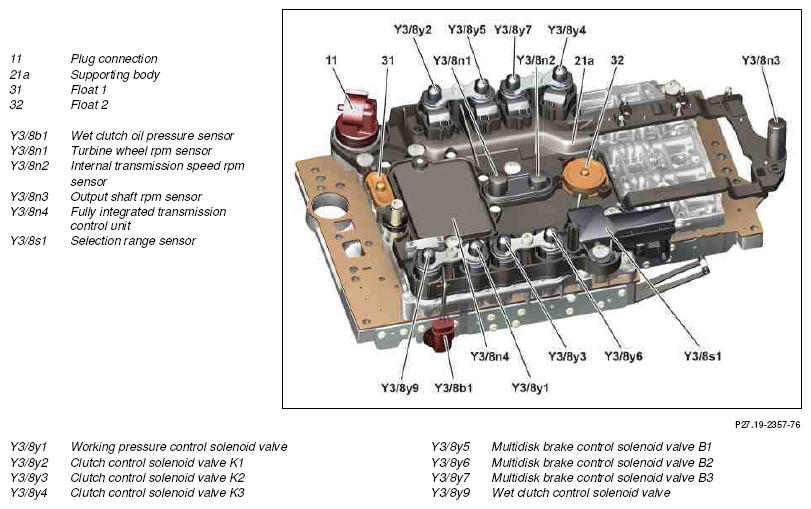

Fig 7: Fully Integrated Transmission Control Unit

Courtesy of MERCEDES-BENZ USA
