Automatic transmission (AT), location of electric/electronic components - GF27.10-P-0001-08AHL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 722.9 (except 722.930/931) in MODEL 212

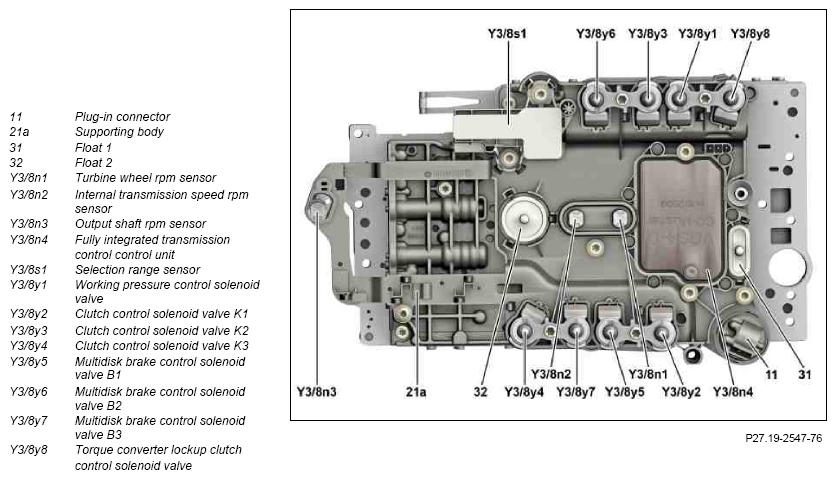

Fully integrated transmission control controller unit (Y3/8) viewed from above, shown on fully integrated transmission control 4 (VGS4-0, as of YoM 12)

Fig 1: Automatic Transmission Electronic Components

Courtesy of MERCEDES-BENZ USA

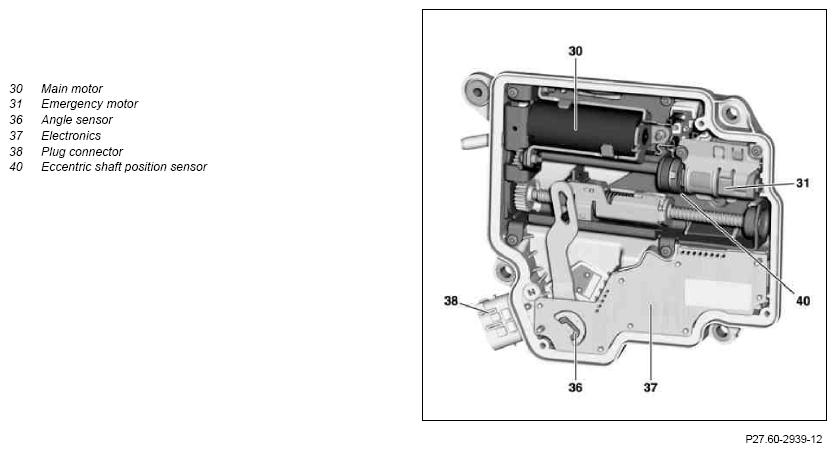

Rear view of intelligent servo module for DIRECT SELECT (A80), up to 31.8.08

Fig 2: Intelligent Servo Module Components - Up To 31.8.08

Courtesy of MERCEDES-BENZ USA

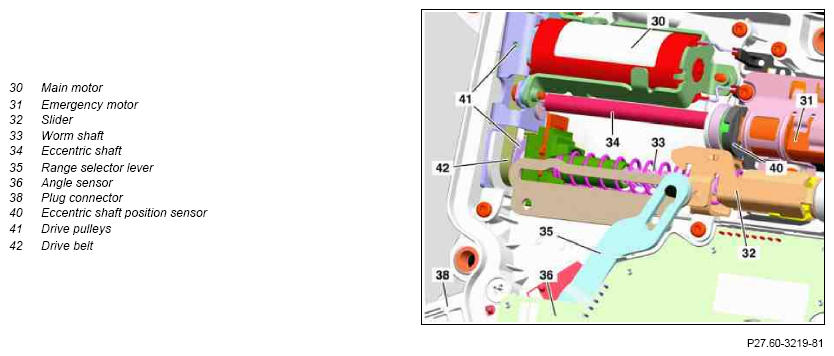

Rear view of intelligent servo module for DIRECT SELECT, as of 1.9.08

Fig 3: Intelligent Servo Module Components - As Of 1.9.08

Courtesy of MERCEDES-BENZ USA

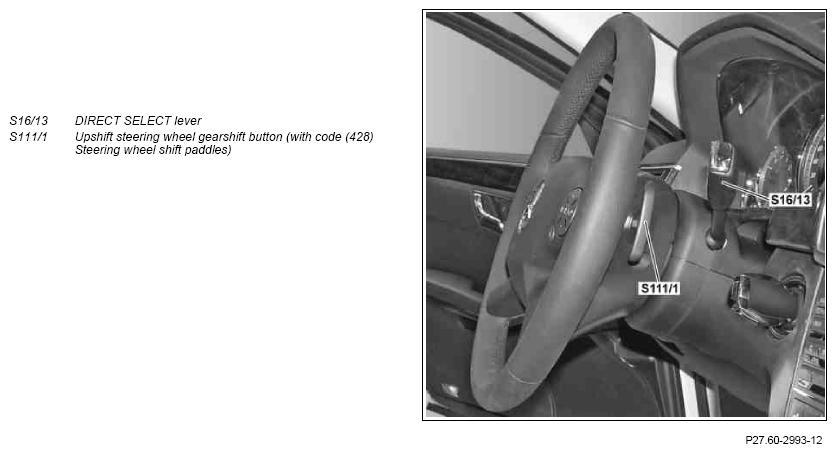

On the rear of the multifunction steering wheel (MFL) is the steering wheel upshift button (right), the DIRECT SELECT lever and the steering wheel downshift button (S110/1) (left).

View of multifunction steering wheel from right

Fig 4: Multifunction Steering Wheel

Courtesy of MERCEDES-BENZ USA

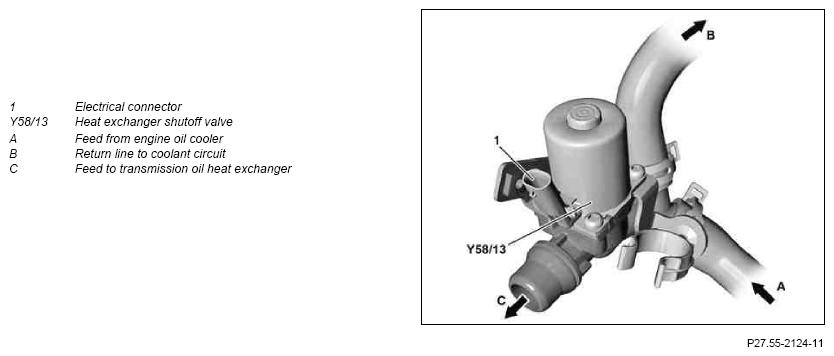

The heat exchanger shutoff valve is an electromagnetically actuated 3-way valve.

View of heat exchanger shutoff valve (Y58/13) (with engine 651.9)

Fig 5: Heat Exchanger Oil Flow Diagram

Courtesy of MERCEDES-BENZ USA
