Automatic transmission (AT), block diagram - GF27.10-P-0001-20AHL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 722.9 (except 722.930/931) in MODEL 212

Block diagram, up to facelift 13

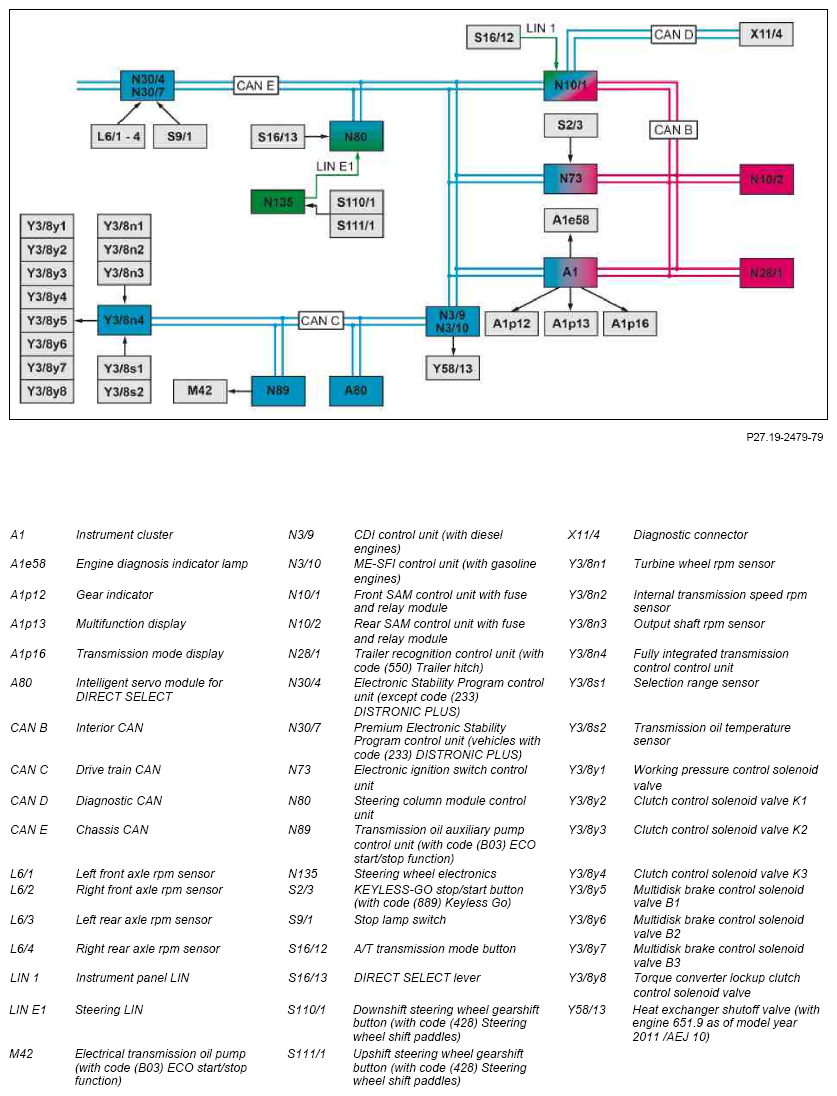

Fig 1: Automatic Transmission Block Diagram - Up To Facelift 13
G10050006Courtesy of MERCEDES-BENZ USA

Block diagram, as of facelift 13

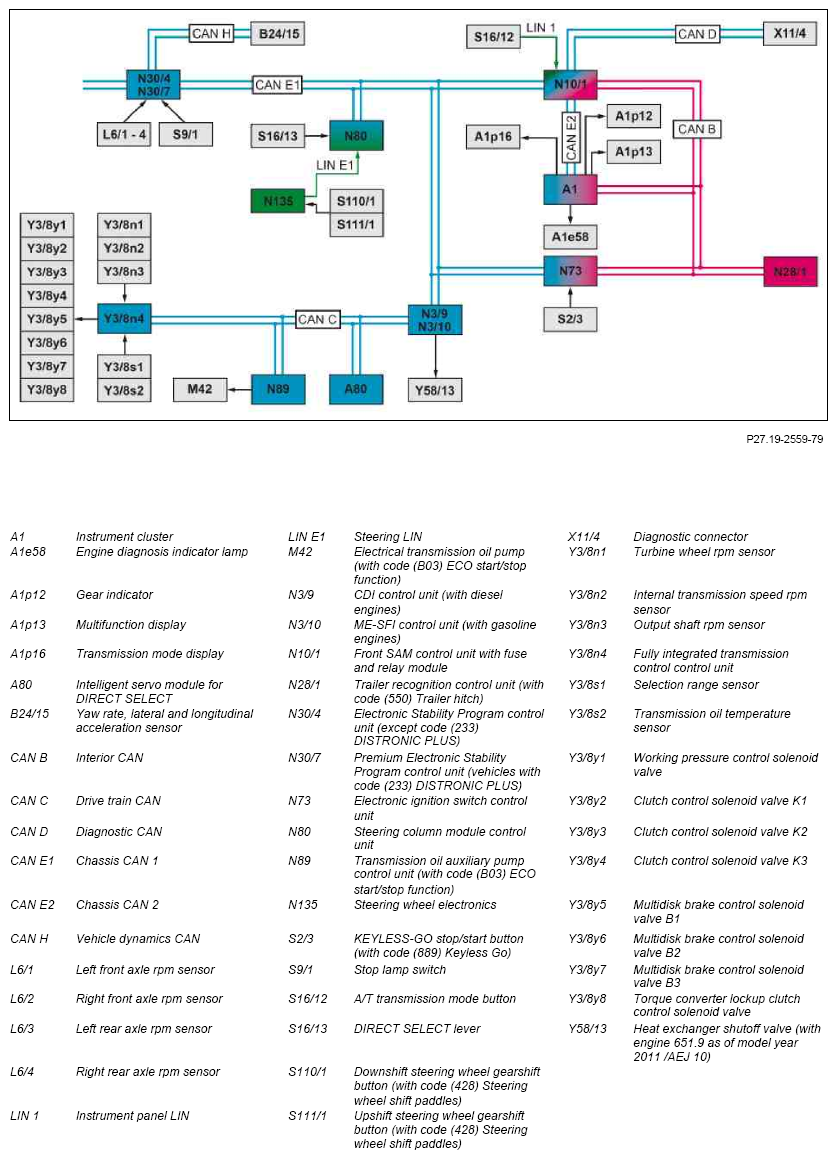

Fig 2: Automatic Transmission Block Diagram - As Of Facelift 13
G10050007Courtesy of MERCEDES-BENZ USA
