Remove/install oil dipstick guide tube - AR01.45-P-9600CD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 651 in MODEL 166, 172, 204, 207, 212 (except 212.098/298), 218

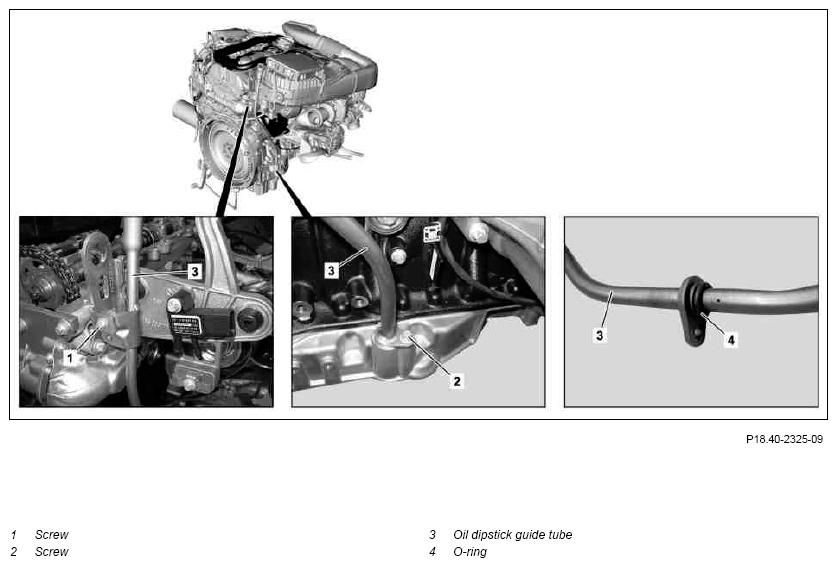

Shown on model 204
| Remove/install | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of the mechanism when the components are moving. | AS00.00-Z-0009-01A | |
| 1 | Remove cylinder head cover trim | ||
| 2 | Remove air filter housing | AR09.10-P-1150CD | |
| 3 | Loosen oil dipstick guide tube for AT on engine | ENGINE 651 in MODEL 204, 207, 212 (except 212.098/298) with TRANSMISSION 722.6 | |
| 4 | Remove bolt (1) | *BA18.40-P-1002-01O | |
| 5 | Secure vehicle on vehicle lift | ENGINE 651 in MODEL 166 | AR00.60-P-0100GZ |
| ENGINE 651 in MODEL 172 | AR00.60-P-0100T | ||
| ENGINE 651 in MODEL 204, 207 | AR00.60-P-0100CW | ||
| ENGINE 651 in MODEL 212 (except 212.098/298), 218 | AR00.60-P-0100EWS | ||
| 6.1 | Remove center underfloor covering | ENGINE 651 in MODEL 166 | |
| ENGINE 651 in MODEL 166 | AR61.30-P-1001GQ | ||
| 6.2 | Remove bottom sections of soundproofing | ENGINE 651 in MODEL 172, 204 (except 204.9), 207, 212 (except 212.098/298), 218 | |
| ENGINE 651 in MODEL 172 | AR94.30-P-5300W | ||
| ENGINE 651 in MODEL 204 (except 204.9), 207, 212 (except 212.098/298), 218 | AR94.30-P-5300EW | ||
| 6.3 | Detach lower engine compartment paneling | ENGINE 651 in MODEL 204.9 | |
| ENGINE 651 in MODEL 204.9 | AR61.20-P-1105CY | ||
| 7 | Unscrew bolt (2) | *BA18.40-P-1002-01O | |
| 8 | Pull oil dipstick guide tube (3) out of engine oil pan | ||
| 9 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Check engine in the area around the oil dipstick guide tube (3) for leaks with the engine running |
OIL LEVEL/OIL PRESSURE SENSOR
| Number | Designation | ENGINE 651 | |
|---|---|---|---|
| BA18.40-P-1002-01O | Screw/bolt, oil dipstick guide tube mount | Nm | 9 |
