Remove/install bottom part of oil pan - AR01.45-P-7555CWY
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 204.08/28/98, 212.08/09/28/29, 218.39
| Remove/install | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1.1 | Remove bottom section of soundproofing | MODEL 204 except 204.9, MODEL 212, MODEL 218 | |
| AR94.30-P-5300EW | |||
| 1.2 | Remove lower engine compartment paneling | MODEL 204.9 | |
| AR61.20-P-1105CY | |||
| 2 | Drain/collect engine oil | ||
| AP18.00-P-0101EWO | |||

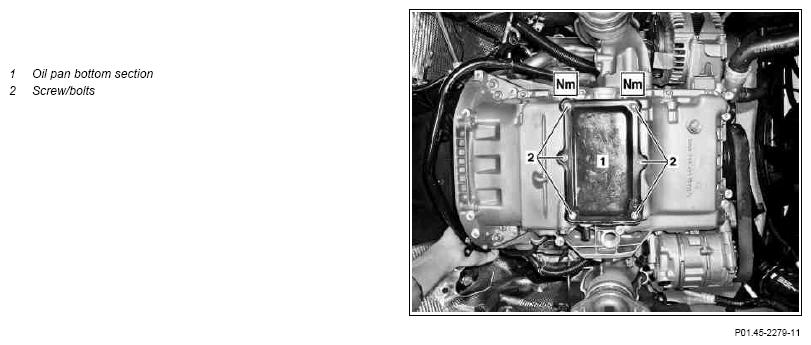

| 3 | Remove screw/bolts (2) | *BA01.45-P-1003-01Q | |
| 4 | Remove oil pan bottom section (1) | ||
| Notes on sealant path for oil pan | AH01.45-P-0001-01OM | ||
| Loctite 5970 sealant | *BR00.45-Z-1013-01A | ||
| Clean | |||
| 5 | Clean sealing surfaces | AR01.00-P-0050-01A | |
Do not use any sharp-edged tools or abrasive paper. The sealing surfaces will be damaged otherwise. |
|||
| Loctite 7200 | *BR00.45-Z-1038-04A | ||
| Loctite 7063 cleaning spray (150 ml) | *BR00.45-Z-1046-04A | ||
| Check | |||
| 6 | Check sealing surface on oil pan bottom section (1) for flatness | ||
| 7 | Install in the reverse order | ||
| 8 | Check engine oil level | ||
| AP18.00-P-0101EWO | |||
Vehicle must be horizontal and standing on its wheels. In order to avoid measurement errors. |
|||
| 9 | Check for leaktightness with engine running |
OIL PAN
| Number | Designation | ENGINE 642 | ||
|---|---|---|---|---|
| BA01.45-P-1003-01Q | Oil pan bottom section to oil pan top section | M6 | Nm | 14 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1013-01A | Loctite 5970 sealant | A 003 989 98 20 |
| BR00.45-Z-1038-04A | Loctite 7200 | Henkel Loctite Deutschland GmbH |
| BR00.45-Z-1046-04A | Loctite 7063 cleaning spray (150 ml) | A 001 986 71 71 10 |
