Rivet timing chain - AR05.10-P-7601-02MMA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 152, 157, 276, 278 Electric motors with an INA timing chain

ENGINE 157 Electric motors with an INA timing chain

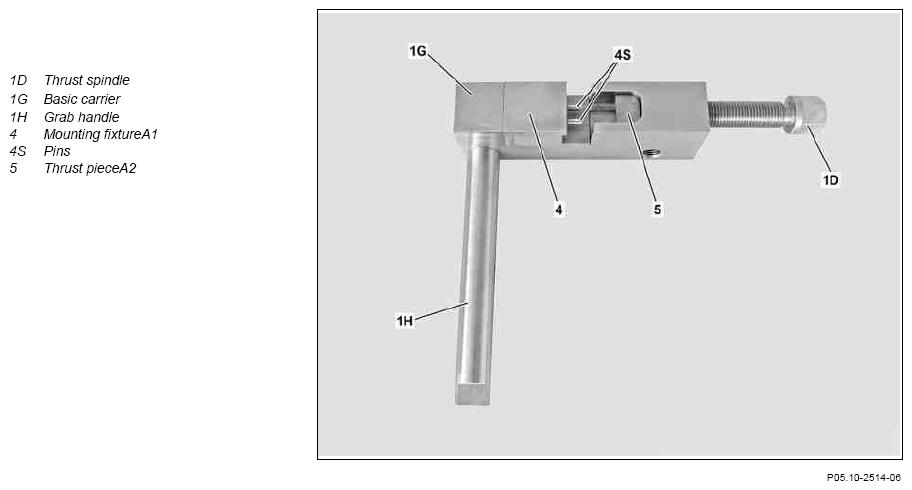

Fig 1: Identifying Rivet Press Tool (276 589 00 39 00)

Courtesy of MERCEDES-BENZ USA

To rivet the timing chain (10) the following tooling is required from the rivet press tool: basic carrier (1G), mount A1 (4), thrust piece A2 (5), mount B1 (6) and thrust piece B2 (7).

When carrying out work on the timing case recess, safeguard this with a clean rag to prevent items dropping down. Parts which have fallen into the timing case recess, must be removed.

Fig 2: Thrust Spindle, Basic Carrier And Pins

Courtesy of MERCEDES-BENZ USA

Fig 3: Timing Chain, Riveting Link Pin And Outer Plate

Courtesy of MERCEDES-BENZ USA

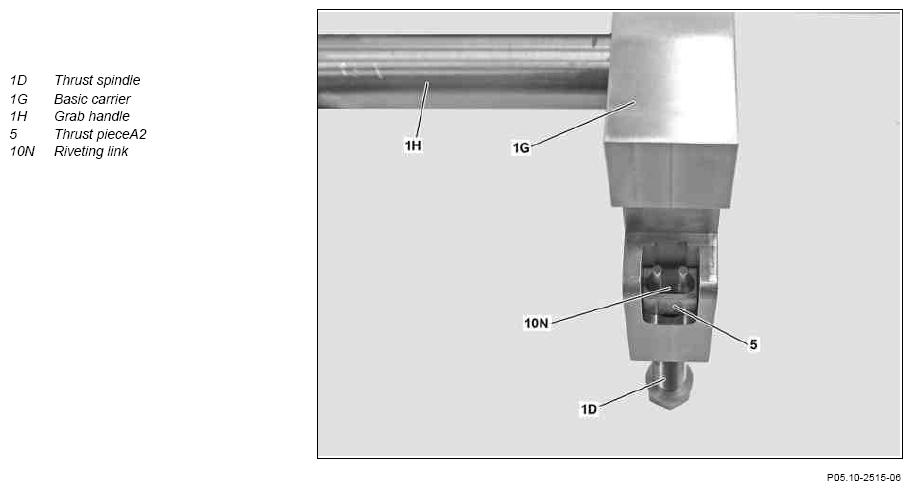

Fig 4: Thrust Spindle, Basic Carrier And Riveting Link

Courtesy of MERCEDES-BENZ USA

Insert riveting link pin (10N) into thrust piece A2 (5).
Ensure correct seating of the riveting link pin (10N) in thrust piece A2 (5).
Insert thrust piece A2 (5) with riveting link pin (10N) in thrust spindle (1D) of the basic carrier (1G).
After inserting the thrust piece A2 (5) in the thrust spindle (1D) of the basic carrier (1G), check the riveting link pin (10N) for correct seating in the thrust piece A2 (5).

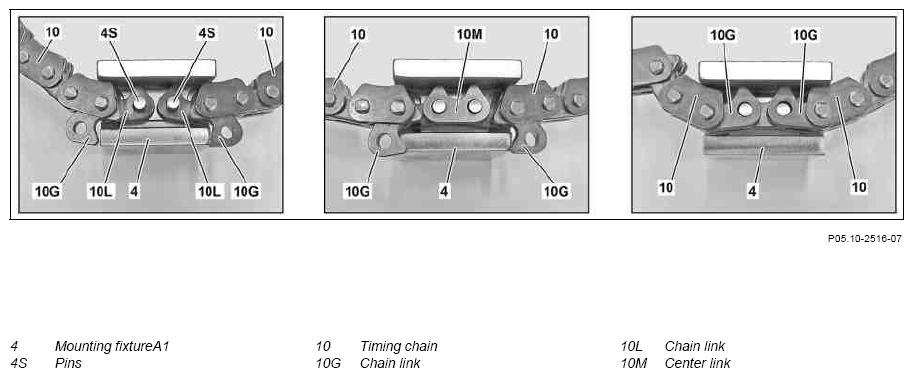

Fig 5: Timing Chain, Pins And Chain Link
Courtesy of MERCEDES-BENZ USA

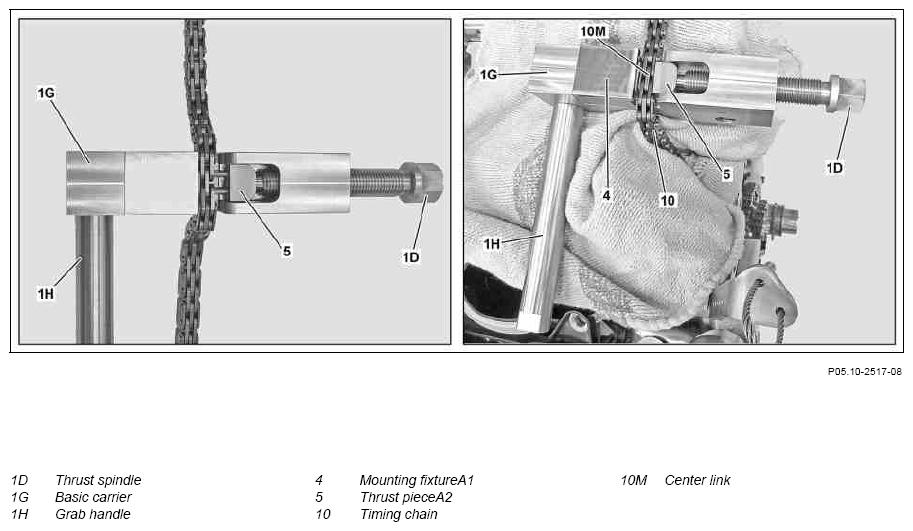

Fig 6: Grab Handle, Timing Chain And Thrust Spindle
Courtesy of MERCEDES-BENZ USA
Place rear chain link (10L) of the timing chain (10) in the mount A1 (4).
Mount A1 (4) is not yet inserted in the basic carrier (1G).

Only place timing chain (10) in the mount A1 (4) until the center link (10M) of the timing chain (10) can be mounted.
Mount center link (10M).
Insert front rear chain link (10G) of the open timing chain (10) in the mount A1 (4).
The chain links (10G, 10L) and the center link (10M) are fixed and guided by sprung pins (4S) in the mount A1 (4).
Insert mount A1 (4) with inserted timing chain (10) in the basic carrier (1G).
Check for correct seating of the timing chain (10) in the mount A1 (4) and the mount A1 (4) in the basic carrier (1G).
Place riveting link pin (10N) or thrust piece A2 (5) through actuation of the thrust spindle (1D) on basic carrier (1G) on timing chain (10) and check for correct positioning.
Press riveting link pin (10N) through actuation of the thrust spindle (1D) into timing chain (10).
In this way the spring-loaded pins (4S) are pushed back into the mount A1 (4).

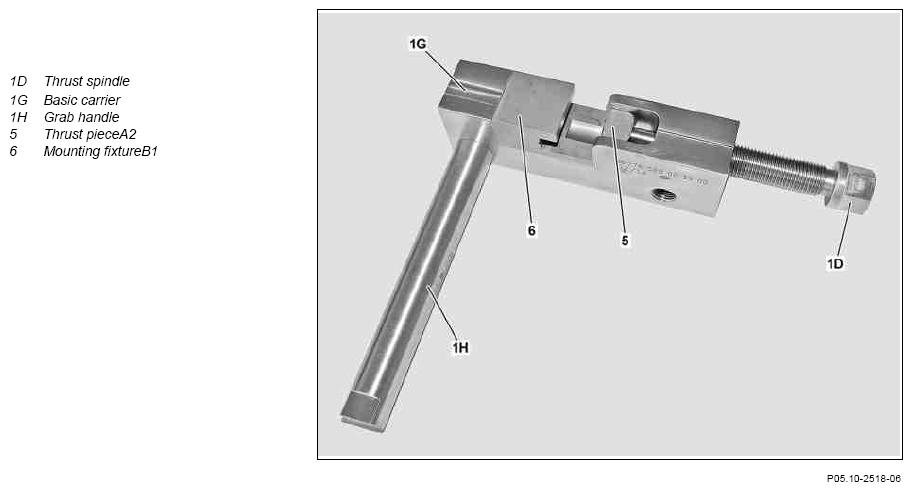

Fig 7: Grab Handle, Mounting Fixture And Thrust Spindle
Courtesy of MERCEDES-BENZ USA
Turn back thrust spindle (1D) on basic carrier (1G).
Detach basic carrier (1G) together with mount A1 (4) and thrust piece A2 (5) from timing chain (10).
Modify grab handle (1H) for basic carrier (1G).
The grab handle (1H) for the basic carrier (1G) must modified to avoid damage to the cylinder head and timing assembly.
Insert outer link (10A) of the timing chain (10) in thrust piece A2 (5).
Check outer link (10A) of timing chain (10) in thrust piece A2 (5) for correct seating.
Insert thrust piece A2(5) with outer link (10A) in thrust spindle (1D) of basic carrier (1G).
Ensure correct seating of the outer link (10A) in thrust piece A2 (5).

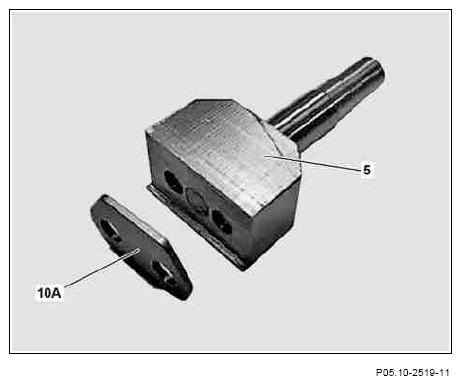

Fig 8: Timing Chain Outer Link And Thrust Piece
Courtesy of MERCEDES-BENZ USA
Insert mount B1 (6) in basic carrier (1G).
Check mount B1 (6) for correct seating in basic carrier (1G).
Insert timing chain (10) in mount B1 (6) and basic carrier (1G).
The open ends of the riveting link pin (10N) must point towards the thrust piece A2 (5).

Ensure correct positioning of the timing chain (10) in the mount B1 (6).
Place outer link (10A) or thrust piece A2 (5) through actuation of the thrust spindle (1D) on basic carrier (1G) on timing chain (10) and check for correct positioning.
Press outer link (10A) through actuation of the thrust spindle (1D) on timing chain (10).
The riveting link pin (10N) must still be able to move pressing on of the outer link (10A).

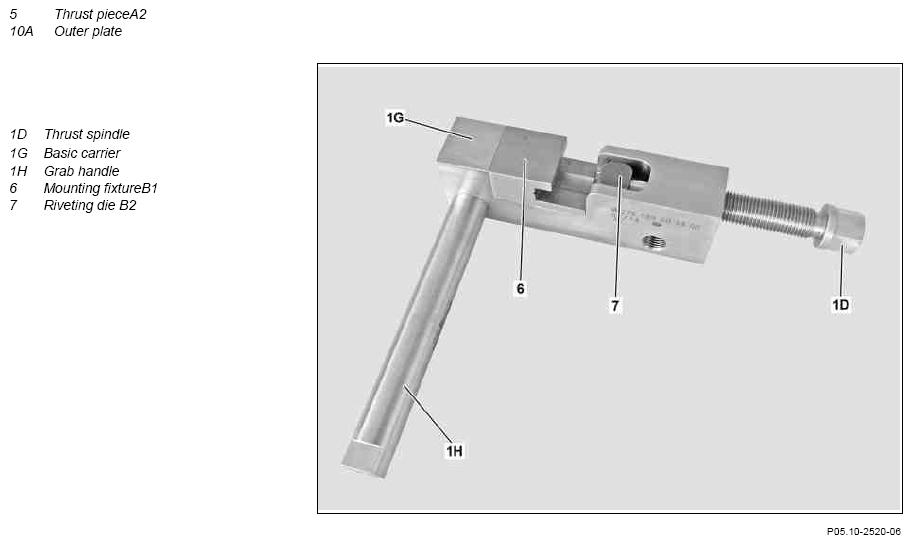

Fig 9: Thrust Spindle, Basic Carrier And Grab Handle
Courtesy of MERCEDES-BENZ USA

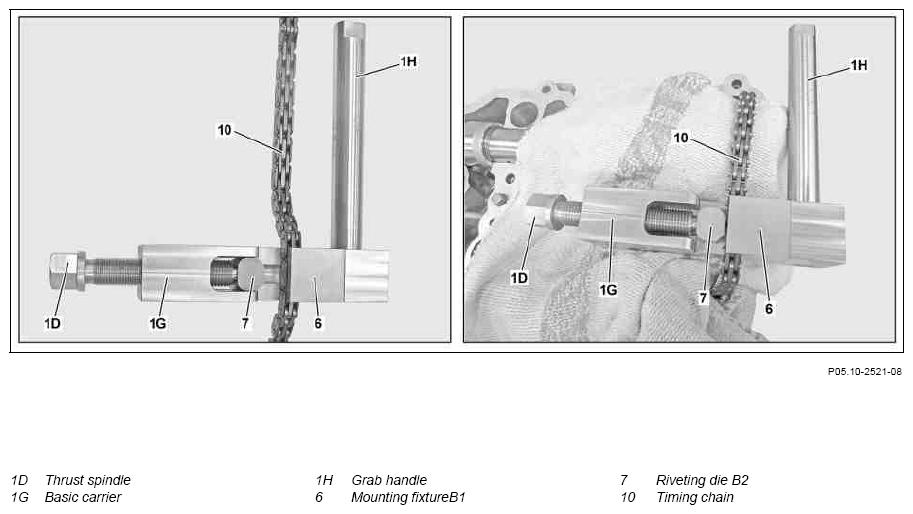

Fig 10: Thrust Spindle, Basic Carrier And Timing Chain
Courtesy of MERCEDES-BENZ USA
Turn back thrust spindle (1D) in basic carrier (1G).
The thrust spindle (1D) must be turned back in the basic carrier (1G) until the thrust piece A2 (5) can be removed.
Remove thrust piece A2 (5) from the thrust spindle (1D) of the basic carrier (1G).
Insert riveting die B2(7) into the thrust spindle (1D) of the basic carrier (1G).
Lay on riveting die B2(7) through actuation of the thrust spindle (1D) on the riveting link pin (10N) and check correct position.
Ensure correct positioning of the timing chain (10) in the mount B1 (6).
Rivet riveting link pin (10N) through actuation of the thrust spindle (1D) using the riveting die B2(7).
Using the riveting die B2(7) both bolts (10B) of the riveting link pin (10N) once.
Detach basic carrier (1G) together with mount B1 (6) and riveting die B2(7) from timing chain (10).

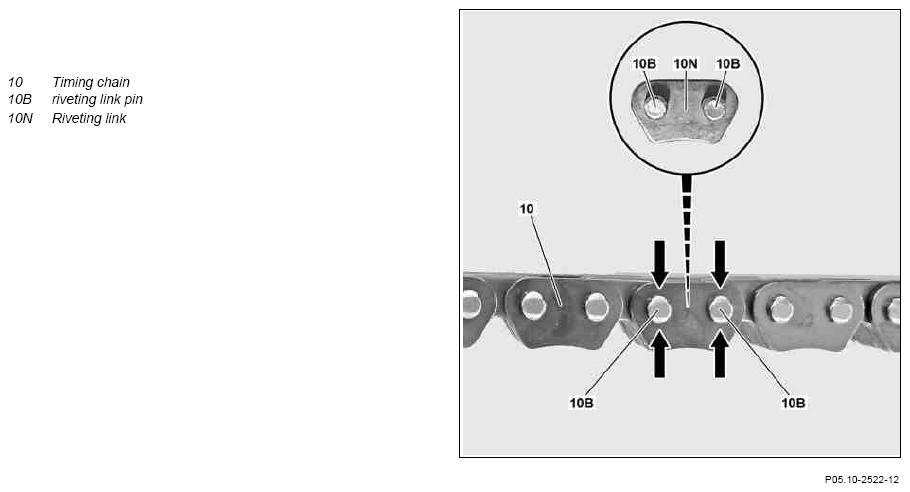

Fig 11: Locating Riveting Link Pins
Courtesy of MERCEDES-BENZ USA

The pins (10B) above on the riveting link pin (10N) show the unriveted condition, whereby the pins (10B) below (see arrows) show the riveted condition.
Check riveting (see arrows) on riveting link pin (10N) and re-rivet if necessary.
If re-rivetting is required, the operation steps must be repeated as of operation step 20.
