Rivet timing chain - AR05.10-P-7601-02CO

ENGINE 642

Fig 1: Identifying Assembly Inserts (112 589 09 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Riveting Tool (602 589 00 39 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Case (602 589 00 98 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Assembly Inserts (602 589 02 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Thrust Piece (602 589 03 63 00)

Courtesy of MERCEDES-BENZ USA

Parts, which have fallen into timing case recess or cylinder head must be removed in order to avoid damage to the engine.

1. Cover timing case recess and cylinder head with shop towels.

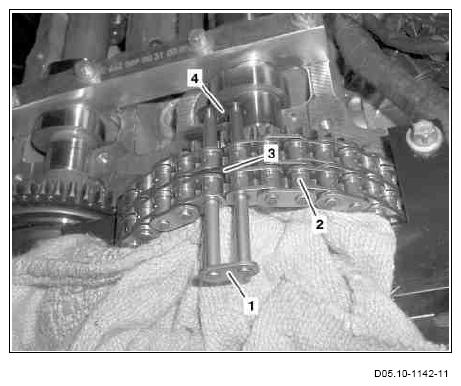

2. Insert new riveted link (4) and new middle plate (3) together with centering fork (1) into the ends of the new timing chain (2). Secure the new center shackle (3) using the centering fork (1).
   Fig 6: Center Shackle, Timing Chain And Middle Plate

   Courtesy of MERCEDES-BENZ USA
3. Insert and tighten assembly insert (6) with digit F5 into the rivet press tool (5).
4. Insert the assembly insert (7) with digit D9 into the rivet press tool (5).

   The assembly insert (7) is able to move on pressure screw (mounted. (8a) and is loosely

   Fig 7: Assembly Insert And Rivet Press Tool

   Courtesy of MERCEDES-BENZ USA
5. Mount rivet press tool (5) on the new timing chain (2) such that the assembly insert (7) touches the new riveted link and the centering fork (1) can be pressed out.
6. Screw in thrust spindle (8) and press in new riveted link up to the stop. Remove centering fork (1).

   Ensure that riveted link and assembly insert (7) are aligned. Do not allow the centering fork (1) which is pressed out to drop into the timing case recess.

7. Remove pressure screw (8) and rivet press tool (5).
8. Remove assembly inserts (6, 7) from rivet press tool (5).
   Fig 8: Pressure Screw, Assembly Inserts And Rivet Press Tool

   Courtesy of MERCEDES-BENZ USA
9. Insert and tighten assembly insert (9) with digit F1 into the rivet press tool (5).
10. Insert thrust piece (10) with digit D8 into the riveting tool (5).
    Fig 9: Assembly Inserts, Thrust Piece And Rivet Press Tool

    Courtesy of MERCEDES-BENZ USA
11. Insert new outer plate (11) into the thrust piece (10).

    The new outer plate (11) is held firmly by the magnetic thrust piece (10).

    Fig 10: Inserting New Outer Plate Into The Thrust Piece

    Courtesy of MERCEDES-BENZ USA

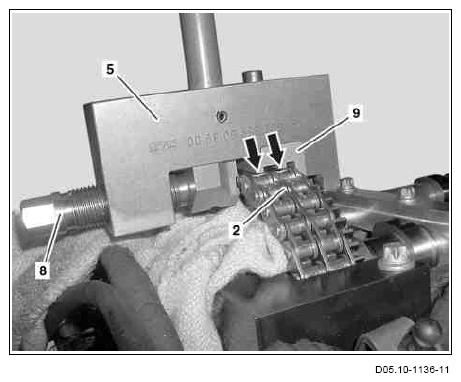

12. Mount rivet press tool (5) such that the spacer bushing of the assembly insert (9) makes contact with the timing chain rolls (2) (arrows).

    Ensure that riveted link and new outer plate are aligned.

13. Screw in pressure screw (8) on rivet press tool (5) until there is firm resistance.

    While pressing on ensure that the bolt of the new rivet link in the bores break in the new outer plate.

14. Remove pressure screw (8) and rivet press tool (5).
    Fig 11: Locating Timing Chain Rolls

    Courtesy of MERCEDES-BENZ USA
15. Turn thrust piece (10) in the rivet press tool (5) on the rivet profile (arrow).
    Fig 12: Turning Thrust Piece In The Rivet Press Tool On The Rivet Profile

    Courtesy of MERCEDES-BENZ USA

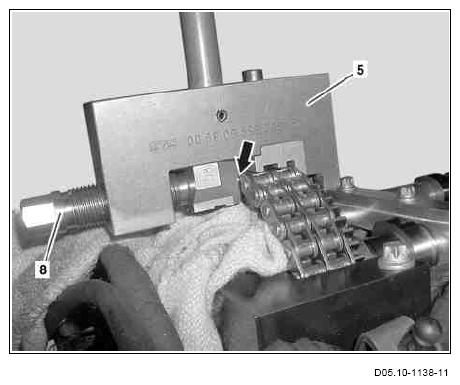

16. Fit rivet press tool (5) at the center onto one of both timing chain pins of the new riveted link (arrow).
17. Tighten thrust spindle (8) of the rivet press tool (5) and rivet first timing chain bolt for the new riveted link.

    Observe tightening torque.

18. Loosen pressure screw (8) by turning and place rivet press tool (5) on second first timing chain bolt for the new riveted link.
19. Tighten pressure screw (8) on rivet second timing chain bolt.

    Observe tightening torque.

20. Loosen pressure screw (8) and remove rivet press tool (5)
    Fig 13: Locating Timing Chain Bolt

    Courtesy of MERCEDES-BENZ USA
21. Check both rivetings (arrow) on the new timing chain (2); re-rivet if necessary.
22. Remove rag from timing case recess and cylinder head.
    Fig 14: Locating Timing Chain Rivets

    Courtesy of MERCEDES-BENZ USA
