Place engine on cylinder 1 at 40 degrees after top dead center - AR05.10-P-7620-04MM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 152.9, 157, 276, 278

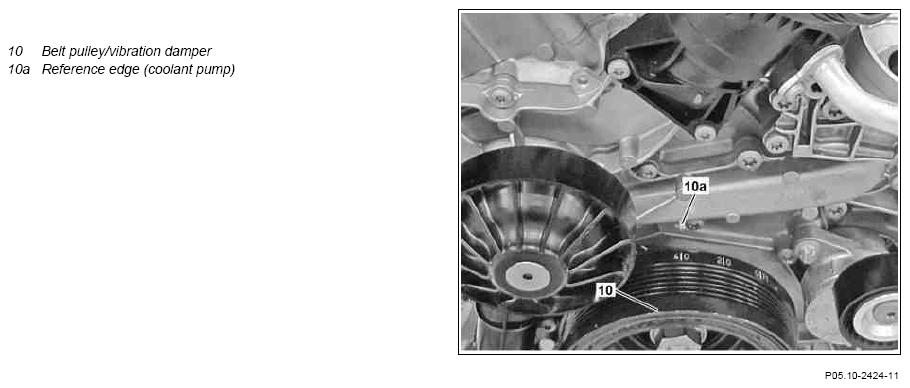

Shown on engine 276
Courtesy of MERCEDES-BENZ USA

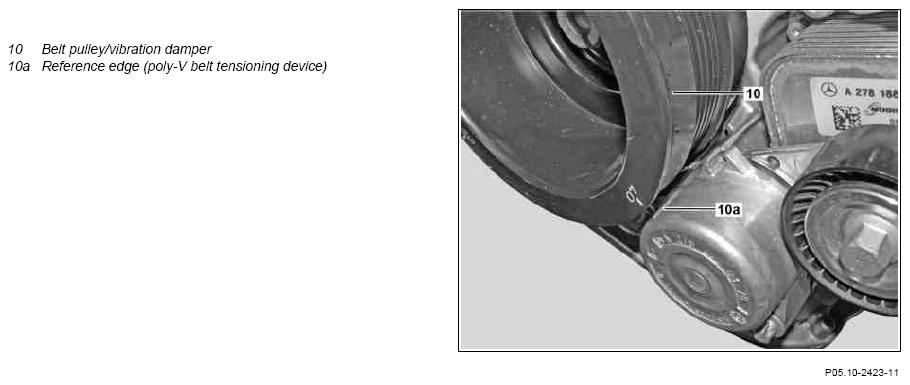

Engine 152.9, 157, 278, shown on engine 278
Courtesy of MERCEDES-BENZ USA
Shown on engine 276
Courtesy of MERCEDES-BENZ USA
Shown on engine 276
Courtesy of MERCEDES-BENZ USA
- Rotate engine at the center bolt of the crankshaft in direction of engine rotation until marking for a 40°
CKA on the belt pulley/vibration damper (10) coincides with reference edge (10a).
The reference edge (10a) is located for engine 276 on the coolant pump and for engines 152.9, 157, 278 on the poly-V belt tensioning device.
The engine must not be turned against the direction of rotation of engine otherwise the timing chain can get jammed.
- Check position of camshafts based on the laser marks (arrows).

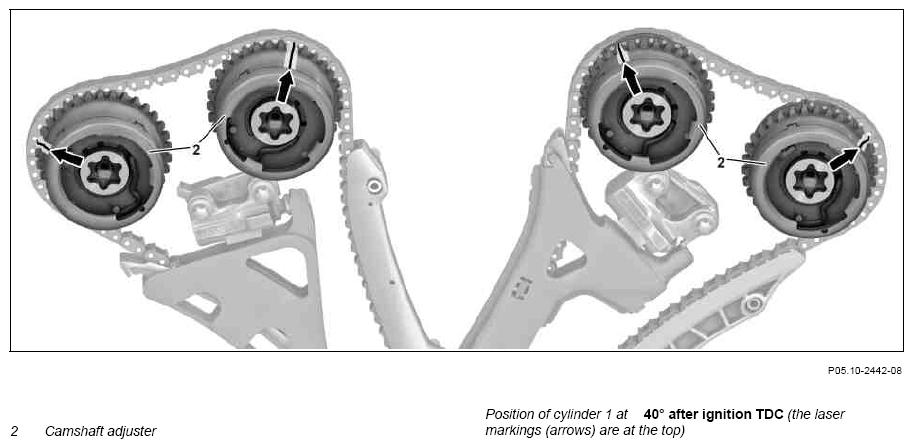

If the laser marks on the camshaft adjusters (2) are located at the top (see Fig 4) and the mark 40° is at the reference edge (10a), then cylinder 1 is at 40° after ignition TDC.

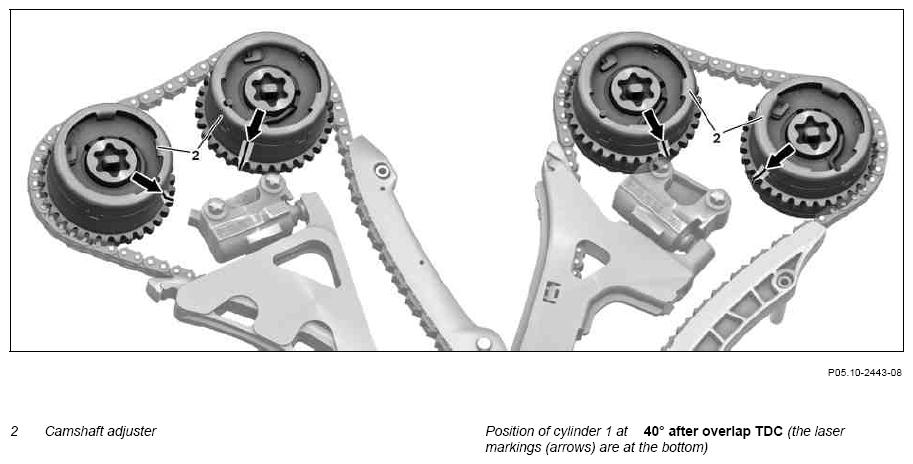

If the laser marks on the camshaft adjusters (2) are located at the bottom (see Fig 4) and the mark 40° is at the reference edge (10a), then cylinder 1 is at 40° after overlap TDC.
A complete crankshaft revolution (360°) lies between 40° after ignition TDC and 40° after overlap TDC on cylinder 1.
