Mark pulse wheel on removed camshaft - AR05.20-P-6292-04MM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 152, 157, 276, 278

ENGINE 157

MODIFICATION NOTES

17.11.14

WIS Service Media Link inserted.

Fig 1: Identifying Template (278 589 00 23 00)

Courtesy of MERCEDES-BENZ USA

Shown on engine 276.920

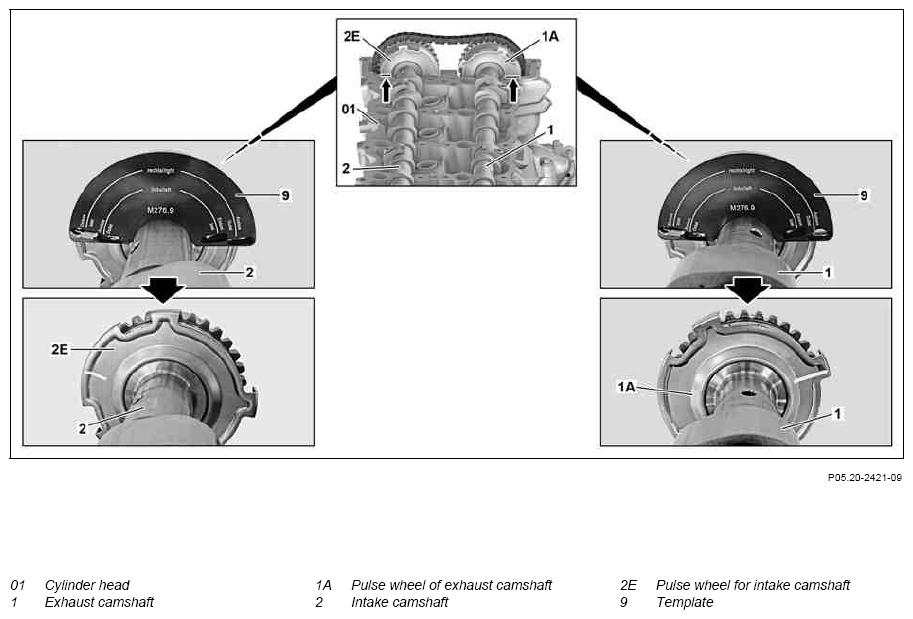

Fig 2: Mark Pulse Wheel Components - Shown On Engine 276.920

Courtesy of MERCEDES-BENZ USA

The template (9) may only be attached for a removed exhaust camshaft (1) and intake camshaft (2).

Damage can occur otherwise to the pulse wheel (1A, 2E) of the exhaust and intake camshaft (1, 2).

WIS Service Media

/03,/201408,/02

Clean the pulse wheel (1A, 2E) of the exhaust camshaft and intake camshaft (1, 2).
The pulse wheels (1A, 2E) must be absolutely oil and grease free.
The template (9) must be selected for the respective engine variant.
The engine variant is visible on the respective template (9).

ENGINE 152

For the engine variant M152 the template (9) must be turned to attach markings for the respective side.
Place template (9) on the pulse wheel (1A) of the exhaust camshaft (1).
The template (9) must noticeably engage in the pulse wheel (1A) of the exhaust camshaft (1).
Mark pulse wheel (1A) for the exhaust camshaft (1).
Select the respective marking window on the template (9) and mark pulse wheel (1A) of the exhaust camshaft (1) using a suitable pen.

False marking of the pulse wheel (1A) will cause wrong assembly and therefore engine damage.
Remove template (9) from pulse wheel (1A) of the exhaust camshaft (1) and check the marking.
Check the marking and repeat operation step 3, 4 if necessary.
Place template (9) on the pulse wheel (2E) of the intake camshaft (2).
Mark pulse wheel (2E) for the intake camshaft (2).
Select the respective marking window on the template (9) and mark pulse wheel (2E) of the intake camshaft (2) using a suitable pen.

False marking of the pulse wheel (2E) will cause wrong assembly and therefore engine damage.
Remove template (9) from pulse wheel (2E) of the intake camshaft (2) and check the marking.
Check the marking and repeat operation step 6, 7 if necessary.
Perform markings on the opposite cylinder bank analog to the work procedure.
