Draw in timing chain - AR05.10-P-7601-04VA

ENGINE 272, 273

Fig 1: Identifying Case (602 589 00 98 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Assembly Link (272 589 03 63 00)

Courtesy of MERCEDES-BENZ USA

1. Cover over timing case recess with a clean cloth.

   The timing case recess must be secured against parts falling down. Parts that have fallen into the timing case recess must be removed.

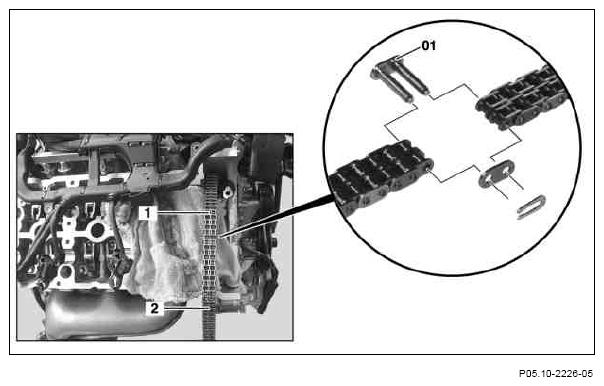

2. Connect the new timing chain (2) and the old timing chain (1) with the assembly link (01).

   Fit the lock of the assembly link (01) in the direction opposite to that in which the timing chain is drawn; otherwise it could get jammed on the slide rails and come off when the timing chain is drawn.

   Fig 3: Timing Chains And Assembly Link

   Courtesy of MERCEDES-BENZ USA
3. Remove the rags from the timing case recess.

   Otherwise, they could get pulled into the timing case recess when the engine is cranked.

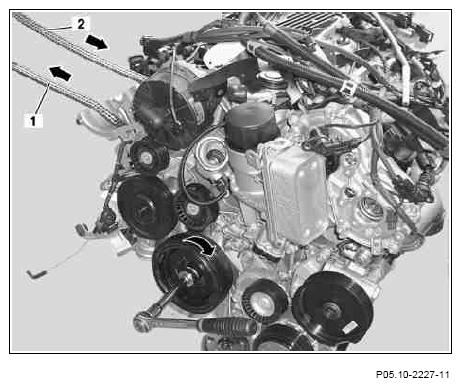

4. Turn the crankshaft slowly in the engine's direction of rotation (arrow) and draw in the new timing chain (2) until the ends of the new timing chain (2) can be connected.

   As the new timing chain (2) is being drawn in (arrows), pull out the end of the old timing chain (1) evenly as it becomes free.

5. Cover over timing case recess with a clean cloth.

   The timing case recess must be secured against parts falling down. Parts that have fallen into the timing case recess must be removed.

6. Detach the assembly link (01), and separate the old timing chain (1) from the new timing chain (2).

   The assembly link (01) must be removed. The assembly link is only an aid for assembly and is not suitable for engine operation.

   Fig 4: Separating The Old Timing Chain From The New Timing Chain

   Courtesy of MERCEDES-BENZ USA
