Remove/install freewheeling device - AR00.60-P-1500A

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 164, 166, 207, 212, 216, 218, 221, 251

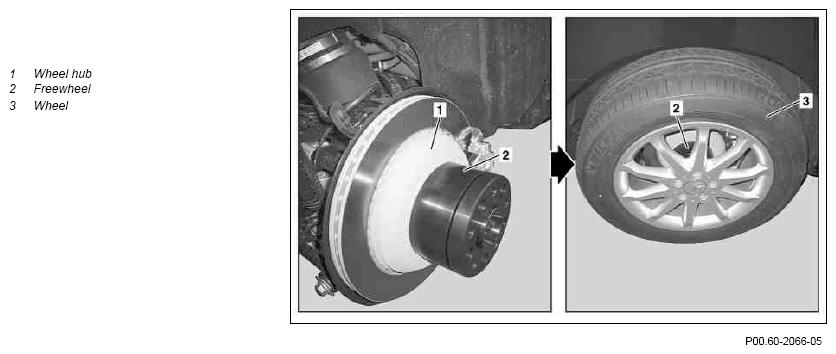

Fig 1: Freewheeling Device Remove/Install Components
G09973529Courtesy of MERCEDES-BENZ USA
REMOVING Remove
1 Secure vehicle against starting off and rolling away by itself
2 Detach respective wheel (3)
REFER TO MAINTENANCE   MODEL 207 AP40.10-P-4050CW
REFER TO MAINTENANCE   MODEL 166, 212, 218 AP40.10-P-4050EW
REFER TO MAINTENANCE   MODEL 251 AP40.10-P-4050RT
REFER TO MAINTENANCE   MODEL 164 AP40.10-P-4050Z
REFER TO MAINTENANCE   MODEL 216, 221
IMPORTANT Use vehicle floor jack.		 AP40.10-P-4050SX
3 Install limp-home mode buffer MODEL 212, 218
with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS)))		 AR32.00-P-1000EW
4 Mount freewheeling device (2) to wheel hub (1) NOTES Before mounting the SPECIAL TOOL freewheel (2) it must be ensured that the vehicle is at a ready to drive level.
Otherwise the body may be damaged.
    TORQUE SPECIFICATION
MODEL 164
MODEL 166
MODEL 251		 *BA40.10-P-1002-01J
    TORQUE SPECIFICATION
MODEL 207
MODEL 212
MODEL 218		 *BA40.10-P-1004-01M
    TORQUE SPECIFICATION
MODEL 216
MODEL 221		 *BA40.10-P-1002-01L
    SPECIAL TOOL Freewheel mechanism Fig 2
5 Mount wheel (3) to freewheeling device (2) NOTES
Model 207, 212, 216, 218, 221 with 4MATIC: In addition to the SPECIAL TOOL freewheel (2), the front wheels also have to be raised when maneuvering. Use vehicle floor jack or other maneuvering aid.
Otherwise the body may be damaged.
NOTES
With a mounted SPECIAL TOOL freewheel (2) the vehicle may only be maneuvered by hand (at max. 5 km/h or 3 mph).
Driving or towing the vehicle is not permitted.
NOTES
When mounting on the steered axle, avoid any steering locks, which could lead to contact with the body.
Otherwise the body will be damaged.
    TORQUE SPECIFICATION
MODEL 164
MODEL 166
MODEL 251		 *BA40.10-P-1003-01J
    TORQUE SPECIFICATION
MODEL 207
MODEL 212
MODEL 218		 *BA40.10-P-1005-01M
    TORQUE SPECIFICATION
MODEL 216
MODEL 221		 *BA40.10-P-1003-01L
6 Removal in the reverse order
WHEELS

Number Designation MODEL 164 MODEL 166
BA40.10-P-1002-01J Wheel freewheel to wheel hub Nm 80 80
WHEELS

Number Designation MODEL 251
BA40.10-P-1002-01J Wheel freewheel to wheel hub Nm 80
WHEELS

Number Designation MODEL 216 MODEL 221
BA40.10-P-1002-01L Freewheel to wheel hub Nm 80 80
WHEELS

Number Designation MODEL 164 MODEL 166
BA40.10-P-1003-01J Wheel to wheel freewheel Nm 80 80
WHEELS

Number Designation MODEL 251
BA40.10-P-1003-01J Wheel to wheel freewheel Nm 80
WHEELS

Number Designation MODEL 216 MODEL 221
BA40.10-P-1003-01L Wheel to freewheel Nm 80 80
WHEELS

Number Designation MODEL 207 MODEL 212
BA40.10-P-1004-01M Freewheel to wheel hub Nm - 80
WHEELS

Number Designation MODEL 218
BA40.10-P-1004-01M Freewheel to wheel hub Nm 80
WHEELS

Number Designation MODEL 207 MODEL 212
BA40.10-P-1005-01M Wheel to freewheel Nm - 80
WHEELS

Number Designation MODEL 218
BA40.10-P-1005-01M Wheel to freewheel Nm 80
Fig 2: Identifying Freewheel Mechanism (164 589 03 63 00)
G09973530Courtesy of MERCEDES-BENZ USA
