Raise/Prop Up Vehicle With Vehicle Lift - AR00.60-P-1005-01A

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

Model 107, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118, 123, 124, 126, 129, 140, 156, 163, 164, 166, 168, 169, 170, 171, 172, 176, 177, 190, 192, 197, 199, 201, 202, 203, 204, 205, 206, 207, 208, 209, 210, 211, 212, 213, 214, 215, 216, 217, 218, 219, 220, 221, 222, 230, 231, 232, 236, 238, 240, 242, 245, 246, 247, 251, 253, 254, 257, 290, 292, 294, 295, 296, 297

Model 167 except code M036 (Maybach version)

Model 167 with code M036 (Maybach version) Running boards not installed

Model 223 except code Z07 (B7 armoring on special protection version)

Model 450, 451, 452, 453, 454

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
Notice	Information on influencing load ratios when removing major assemblies		AH00.60-P-0001-01A
	000 588 00 80 00 Vehicle lift		WS00.00-P-0040B

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

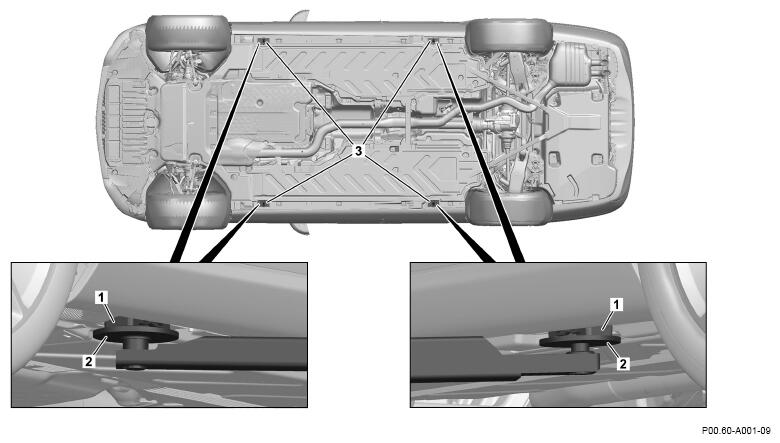

Shown on model 213

Model 117, 118, 156, 164, 166, 171, 172, 176, 177, 192, 203, 204, 205, 206, 207, 209, 211, 212, 213, 214, 216, 217, 218, 219, 221, 222, 231, 232, 236, 238, 242, 246, 247, 251, 253, 254, 257, 290, 292, 294, 295, 296, 297; Model 167 running boards not installed; Model 223 except code Z07 (B7 armoring with special protection version)
Attach adapters (1).

Only if the longitudinal member panel is removed.
Turn support plates (2) of support arms of vehicle lift until these make contact with adapters (1) or vehicle lift support points (3).
Lift vehicle with lifting platform.
