Bring up workshop level on instrument cluster - AP00.20-P-0046A
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 117, 166, 172, 176, 190, 197, 205, 207, 212, 217, 218, 222, 231, 246
MODEL 204 with CODE 442 (Luxury multifunction steering wheel)

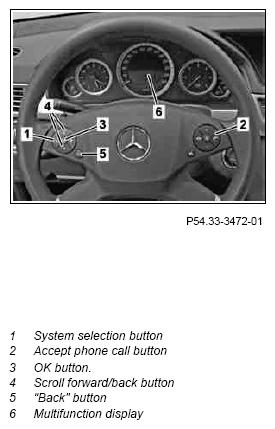

Shown on model 212.002, valid for model 197, 204 with code 442 (Comfort multifunction steering wheel), 207, 212

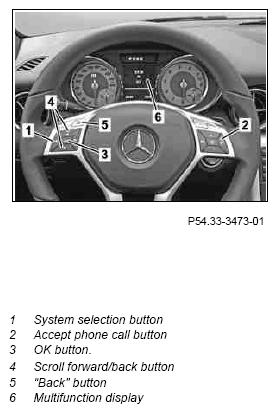

Shown on model 172, valid for model 117, 166, 172, 176, 218, 231, 242, 246

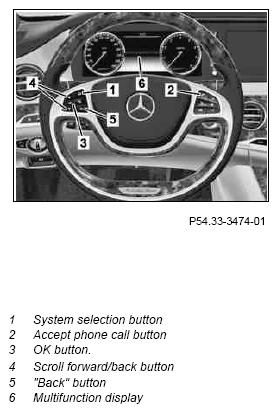

Shown on model 222, valid for model 190, 205, 217, 222
| Open workshop level | |||
| 1 | Close engine hood, doors and trunk lid or liftgate | ||
| 2 | Switch electronic ignition lock control unit to position "1" (circuit 15R) | ||
| 3 | Press system selection button (1) repeatedly until menu item "Trip" is highlighted in multifunction display (6), and then confirm with OK button. (3) | ||
| 4 | Press scroll forward/back button (4) repeatedly until standard "Total distance" display appears in "Trip" menu in multifunction display (6) | ||
| 5 | First press and hold down accept phone call button (2), then within 1 s additionally press OK button. (3) and hold down for approx. 5 s | "Change brake lining" (depending on equipment installed), "ASSYST PLUS", "Head-up-display" (depending on equipment installed). |
|
| Close workshop level | |||
| 6 | Press "Back" button (5) repeatedly until standard display (total distance) appears in multifunction display (6) | ||
| 7 | Switch electronic ignition lock control unit to position "0" |
