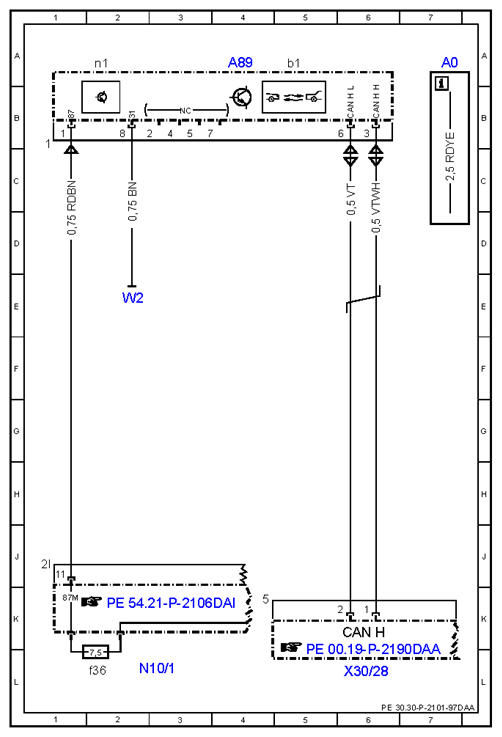

Wiring diagram of Distronic (DTR) control unit - PE30.30-P-2101-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156, 157, 271, 272, 273, 276, 278, 642, 651 in MODEL 212 up to model year 2013 with CODE 233 (DISTRONIC PLUS)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 7A |
| A89 | DISTRONIC electric controller unit | 4A |
| A89b1 | DISTRONIC radar sensor | 5A |
| A89n1 | DISTRONIC control unit | 2A |
| CAN H | Vehicle dynamics CAN | 6K |
| N10/1 | Front SAM control unit with fuse and relay module | 2L |
| N10/1f36 | Fuse 36 | 2L |
| W2 | Right front ground point at lamp unit | 2E |
| X30/28 | Vehicle dynamics CAN voltage distributor electrical connector | 6L |
