Wiring diagram for COLLISION PREVENTION ASSIST control unit - PE30.30-P-2104-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

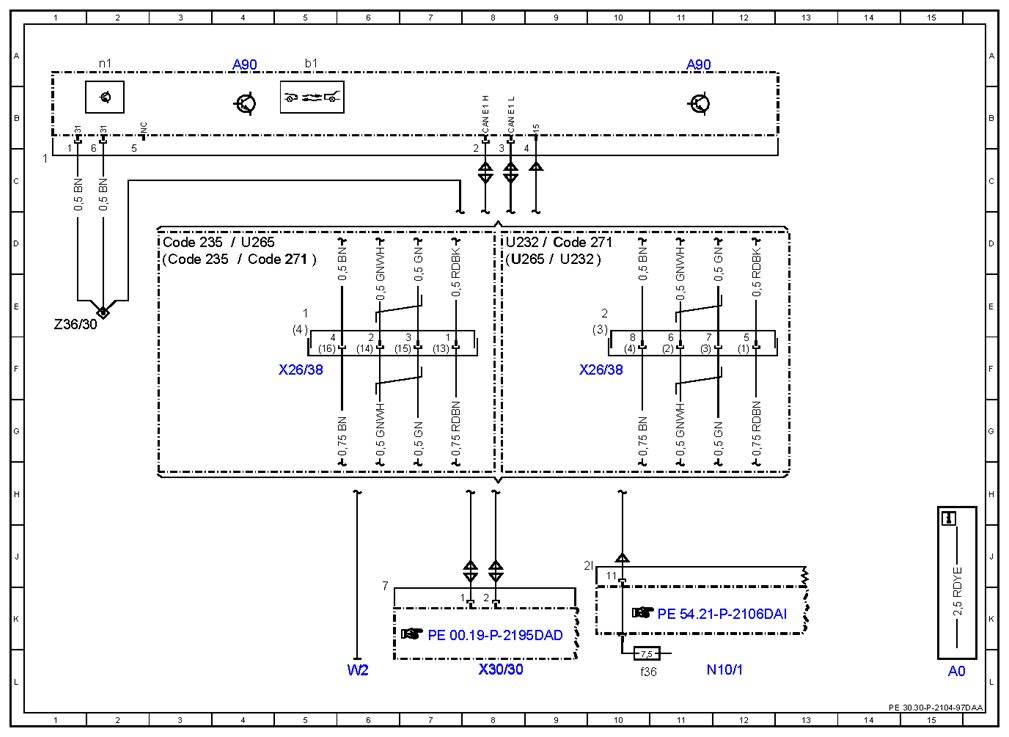

ENGINE 157, 274, 276, 278, 642, 651 in MODEL 212 with CODE 258 (Collision Prevention Assist) as of model year 2014 Control unit A90
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A90 | COLLISION PREVENTION ASSIST controller unit | 4A |
| A90 | COLLISION PREVENTION ASSIST controller unit | 11A |
| A90b1 | 5A | |
| A90n1 | 2A | |
| Code 235 | Active Park Assist | 3D |
| Code 235 | Active Park Assist | 3D |
| Code 271 | Autonomous intervention by the brake system / pedestrian protection | 4D |
| Code 271 | Autonomous intervention by the brake system / pedestrian protection | 9D |
| N10/1 | Front SAM control unit with fuse and relay module | 12L |
| N10/1f36 | Fuse 36 | 10L |
| U232 | Valid for short range radar without active Park Assist | 8D |
| U232 | Valid for short range radar without active Park Assist | 9D |
| U265 | Not valid for pedestrian protection | 4D |
| U265 | Not valid for pedestrian protection | 8D |
| W2 | Right front ground point at lamp unit | 6L |
| X26/38 | Front bumper and frame wiring harness electrical connector | 5F |
| X26/38 | Front bumper and frame wiring harness electrical connector | 10F |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 8L |
| Z36/30 | Short range radar front sensor ground connector sleeve | 1E |
