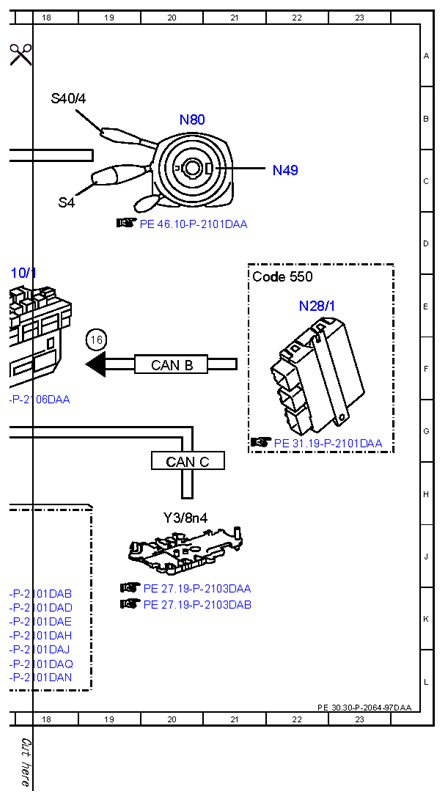

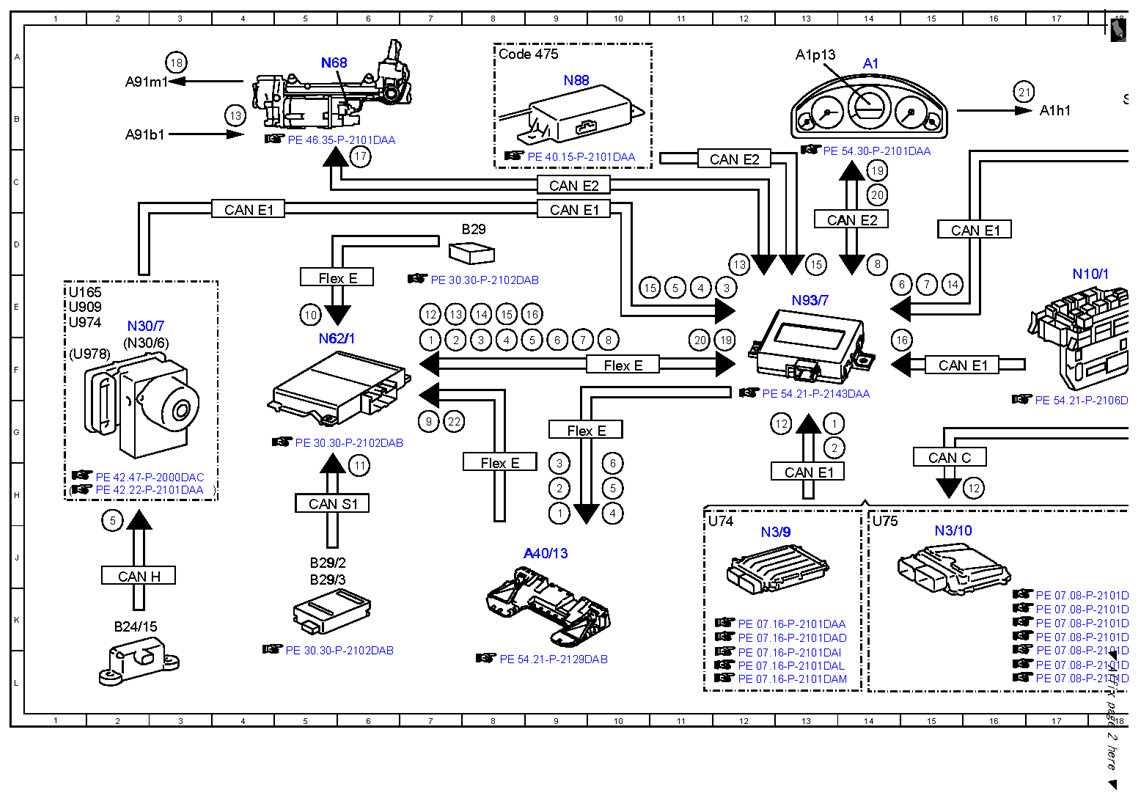

Electrical function schematic for DISTRONIC PLUS with Steer Assist - PE30.30-P-2064-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of model year 2014 with CODE 266 (Steer Assist)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 7F |
| 1 | Engine running, signal | 13G |
| 1 | Engine running, signal | 9H |
| 10 | Far range radar sensor, signal | 5E |
| 11 | Close range radar sensors, signal | 6H |
| 12 | Gear range, status | 16H |
| 12 | Gear range, status | 13G |
| 12 | Gear range, status | 7E |
| 13 | Electric power steering torque sensor, signal | 7E |
| 13 | Electric power steering torque sensor, signal | 12D |
| 13 | Electric power steering torque sensor, signal | 4B |
| 14 | Steering angle sensor, signal | 15E |
| 14 | Steering angle sensor, signal | 8E |
| 15 | Tire pressure monitor, message | 10E |
| 15 | Tire pressure monitor, message | 8E |
| 15 | Tire pressure monitor, message | 13D |
| 16 | Trailer recognition, status | 19F |
| 16 | Trailer recognition, status | 14F |
| 16 | Trailer recognition, status | 9E |
| 17 | Electric power steering, request | 6C |
| 18 | Electric power steering actuator motor, actuation | 3A |
| 19 | Steer Assist status indication, request | 12F |
| 19 | Steer Assist status indication, request | 14C |
| 2 | Drivetrain operational, signal | 7F |
| 2 | Drivetrain operational, signal | 13G |
| 2 | Drivetrain operational, signal | 9H |
| 20 | Warning tone, request | 14C |
| 20 | Warning tone, request | 11F |
| 21 | Warning buzzer, actuation | 16B |
| 22 | Object information, data package | 7G |
| 3 | Wheel speed, signal | 8F |
| 3 | Wheel speed, signal | 12E |
| 3 | Wheel speed, signal | 9H |
| 4 | Wheel rotation direction, signal | 8F |
| 4 | Wheel rotation direction, signal | 11E |
| 4 | Wheel rotation direction, signal | 10H |
| 5 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 2H |
| 5 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 9F |
| 5 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 11E |
| 5 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 10H |
| 6 | Combination switch, status | 9F |
| 6 | Combination switch, status | 14E |
| 6 | Combination switch, status | 10H |
| 7 | CRUISE CONTROL lever, signal | 9F |
| 7 | CRUISE CONTROL lever, signal | 15E |
| 8 | Steer Assist, status | 10F |
| 8 | Steer Assist, status | 14D |
| 9 | Lane data, signal | 7G |
| A1 | Instrument cluster | 14A |
| A1h1 | Warning buzzer | 17B |
| A1p13 | Multifunction display | 13A |
| A40/13 | Stereo multifunction camera | 8J |
| A91b1 | Electric power steering torque sensor | 2B |
| A91m1 | Electric power steering actuator motor | 2A |
| B24/15 | Yaw rate, lateral and longitudinal acceleration sensor | 2K |
| B29 | Front long-range radar sensor | 8D |
| B29/2 | DISTRONIC sensor (DTR) / left front bumper | 5J |
| B29/3 | DISTRONIC sensor (DTR) / right front bumper | 5J |
| CAN B | Interior CAN | 20F |
| CAN C | Drive train CAN | 15H |
| CAN C | Drive train CAN | 20H |
| CAN E1 | Chassis CAN 1 | 13H |
| CAN E1 | Chassis CAN 1 | 9D |
| CAN E1 | Chassis CAN 1 | 4D |
| CAN E1 | Chassis CAN 1 | 16D |
| CAN E1 | Chassis CAN 1 | 15F |
| CAN E2 | Chassis CAN 2 | 14D |
| CAN E2 | Chassis CAN 2 | 12C |
| CAN E2 | Chassis CAN 2 | 9C |
| CAN H | Vehicle dynamics CAN | 2J |
| CAN S1 | Radar CAN 1 | 5H |
| Code 475 | Tire pressure monitor | 8A |
| Code 550 | Trailer hitch | 21E |
| Flex E | Chassis FlexRay | 10F |
| Flex E | Chassis FlexRay | 5E |
| Flex E | Chassis FlexRay | 8H |
| Flex E | Chassis FlexRay | 9G |
| N10/1 | Front SAM control unit with fuse and relay module | 17E |
| N28/1 | Trailer recognition control unit | 22E |
| N3/10 | ME-SFI [ME] control unit | 15J |
| N3/9 | CDI control unit | 12J |
| N30/6 | Regenerative braking system control unit | 2F |
| N30/7 | Premium Electronic Stability Program control unit | 2E |
| N49 | Steering angle sensor | 22C |
| N62/1 | Radar sensors control unit | 5F |
| N68 | Electrical power steering control unit | 5A |
| N80 | Steering column module control unit | 20B |
| N88 | Tire pressure monitor control unit | 9A |
| N93/7 | Chassis gateway control unit | 13E |
| S4 | Combination switch | 18C |
| S40/4 | Cruise control lever | 18B |
| U165 | Valid for AMG | 1E |
| U74 | Valid for diesel engines | 11J |
| U75 | Valid for gasoline engines | 14J |
| U909 | Valid for DISTRONIC PLUS | 1E |
| U974 | Not valid for full hybrid drive | 1E |
| U978 | Valid for full hybrid drive | 1F |
| Y3/8n4 | Fully integrated transmission control unit | 20H |
