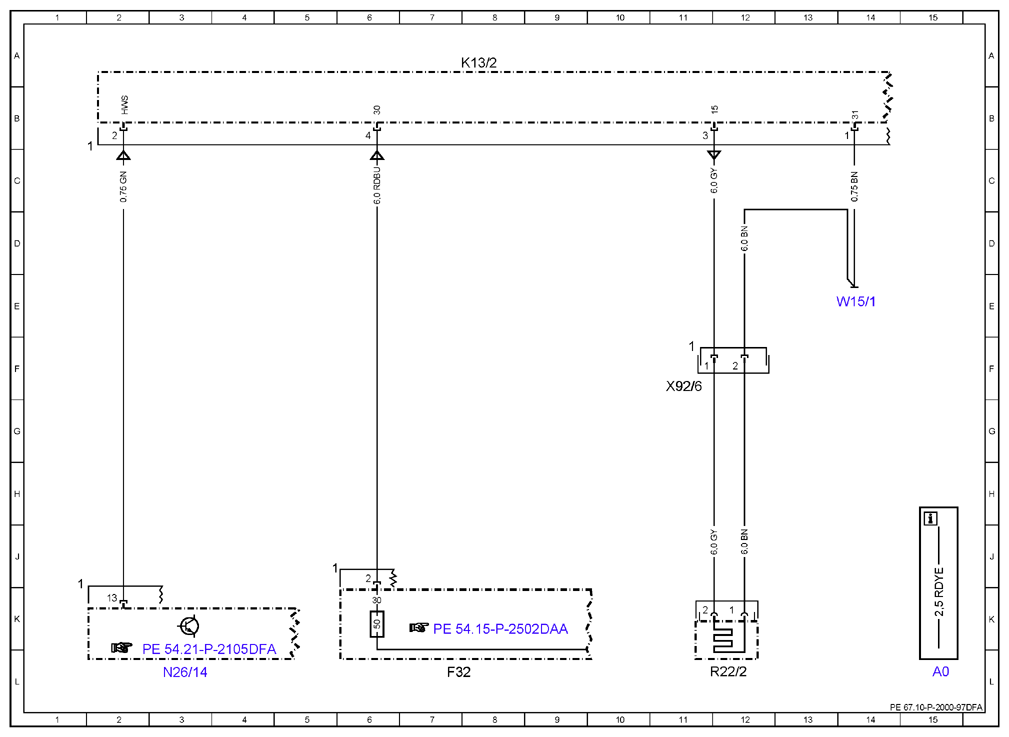

Wiring diagram for heated windshield - PE67.10-P-2000-97DFA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0 with CODE Z04 (Light armoring)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| F32 | Front electrical prefuse box | 7L |
| K13/2 | Heated windshield relay | 8A |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 3L |
| R22/2 | Heated windshield | 12L |
| W15/1 | Right footwell ground point | 14E |
| X92/6 | Heated windshield electrical connector | 11F |
