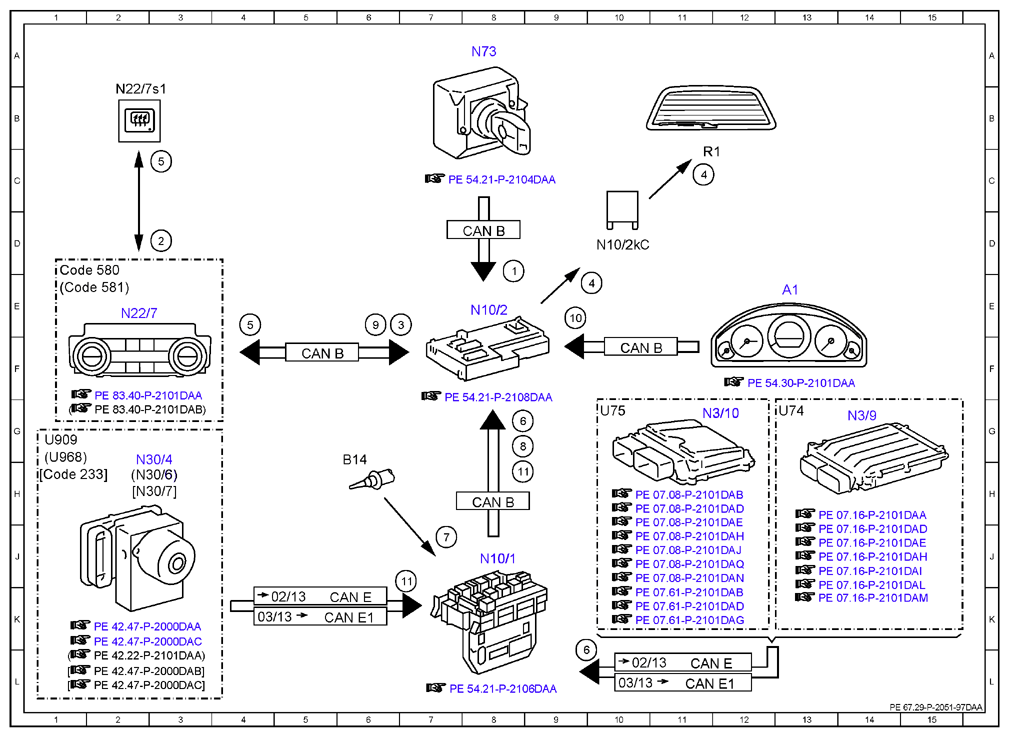

Function schematic for electrical rear window heater - PE67.29-P-2051-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 8E |
| 10 | Vehicle speed, signal | 9E |
| 11 | PRE-SAFE®, status | 7J |
| 11 | PRE-SAFE®, status | 8H |
| 2 | Rear window heater button, status | 3D |
| 3 | Rear window heater, request | 6E |
| 4 | Rear window heater, actuation | 11C |
| 4 | Rear window heater, actuation | 10E |
| 5 | Rear window heater status indication, signal | 4E |
| 5 | Rear window heater status indication, signal | 3C |
| 6 | Switch on additional current consumers, request | 9L |
| 6 | Switch on additional current consumers, request | 8G |
| 7 | Outside temperature sensor, signal | 7J |
| 8 | Outside temperature, signal | 8G |
| 9 | Interior temperature sensor, signal | 6E |
| A1 | Instrument cluster | 13E |
| B14 | Outside temperature sensor | 6H |
| CAN B | Interior CAN | 8D |
| CAN B | Interior CAN | 8H |
| CAN B | Interior CAN | 5F |
| CAN B | Interior CAN | 10F |
| CAN E | Chassis CAN | 6K |
| CAN E | Chassis CAN | 11L |
| CAN E1 | Chassis CAN 1 | 6K |
| CAN E1 | Chassis CAN 1 | 11L |
| Code 233 | DISTRONIC PLUS | 1H |
| Code 580 | Automatic air conditioning | 1E |
| Code 581 | Comfort automatic air conditioning | 1E |
| N10/1 | Front SAM control unit with fuse and relay module | 8J |
| N10/2 | Rear SAM control unit with fuse and relay module | 8E |
| N10/2kC | Heated rear window relay | 10D |
| N22/7 | Automatic air conditioning control and operating unit | 2E |
| N22/7s1 | Rear window heater button | 2B |
| N3/10 | ME-SFI [ME] control unit | 11G |
| N3/9 | CDI control unit | 14G |
| N30/4 | Electronic Stability Program control unit | 2H |
| N30/6 | Regenerative braking system control unit | 2H |
| N30/7 | Premium Electronic Stability Program control unit | 2H |
| N73 | Electronic ignition switch control unit | 8A |
| R1 | Rear window heater | 11C |
| U74 | Valid for diesel engines | 13G |
| U75 | Valid for gasoline engines | 10G |
| U909 | Valid for DISTRONIC PLUS | 1G |
| U968 | Valid for mild hybrid drive | 1G |
