Cut out windshield with cutting blade - AR67.10-P-1000-01TS

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 211 with CODE Z04 (Light armoring)

MODEL 212 with CODE Z04 (Light armoring)

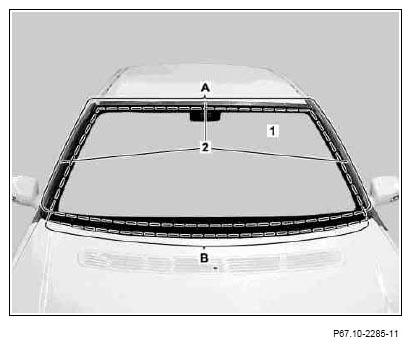

Fig 1: Cutting Adhesive Bead And Support Bead at Windshield

Courtesy of MERCEDES-BENZ USA

Tape up surfaces zones on window cutout on front edge of roof and left and right A-pillars with adhesive tape (2).
Remove seal strip from windshield (1) at top to front edge of roof with suitable tool.
Cut adhesive bead and support bead at windshield (1) (area B).
MODEL 211 Use window removal tool FSC 1.6. Cutting blade, L-shape, cutting length 25.4 mm Order no. 6 39 03 207 01 2

MODEL 212 Use window removal tool FSC 1.6. Cutting blade, Z-shape, cutting length 60 mm Order no. 6 39 03 081 01 3
Cut adhesive bead on windshield (1) in relation to A- pillars and roof edge (area A).
MODEL 211 Use window removal tool FSC 1.6. Cutting blade, L-shape, cutting length 25.4 mm Order no. 6 39 03 207 01 2,

Fig 2: Lifting Windshield Away From Body Flange

Courtesy of MERCEDES-BENZ USA

Place rag (4) between windshield (1) and engine hood.
Position cup suction tool (3) in upper third of windshield (1) and lift windshield (1) away from body flange.
Helper required to guide windshield (1). Otherwise the windshield (1) or the adjacent body parts can be damaged.

Detach windshield (1) from body flange in upper area first, then pry out upward.

MODEL 212 Use window removal tool FSC 1.6. Cutting blade, Z-shape, cutting length 60 mm Order no. 6 39 03 081 01 3
