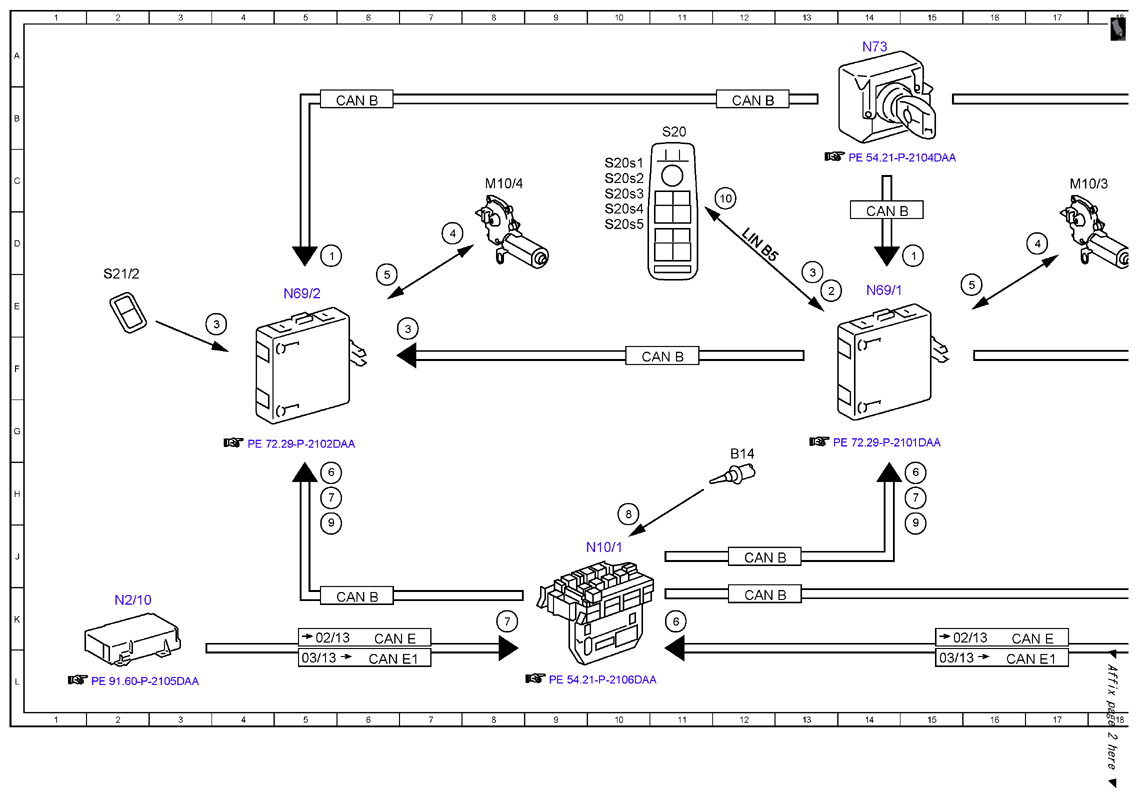

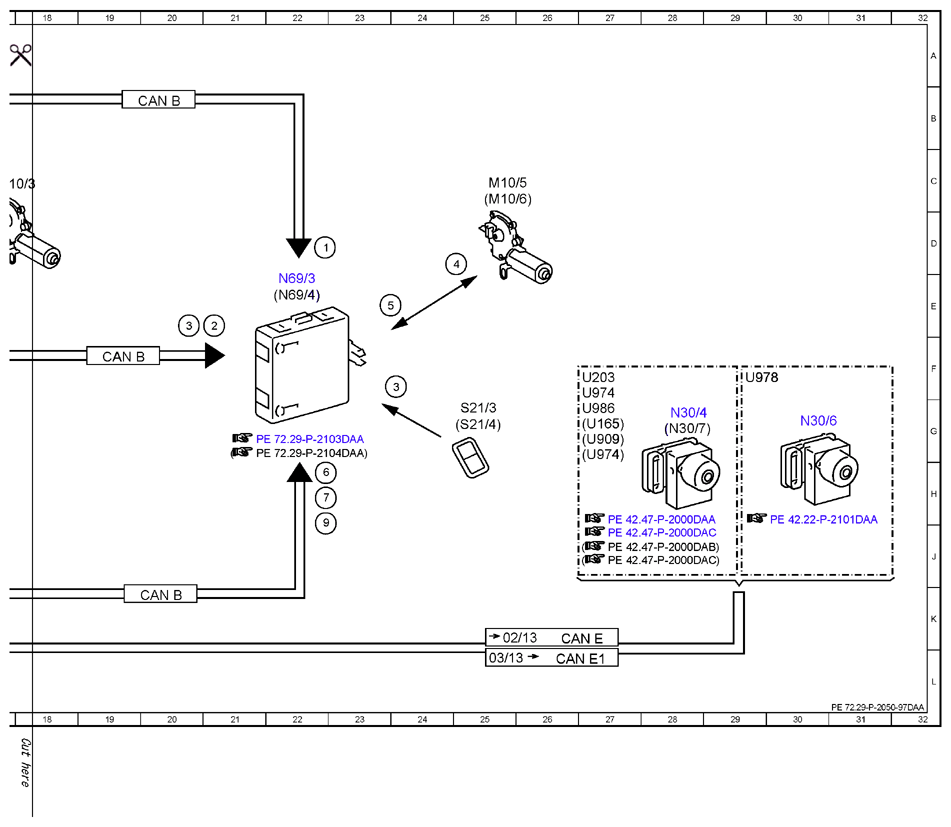

Electrical function diagram for power windows - PE72.29-P-2050-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 15D |
| 1 | Circuit 15, status | 5D |
| 1 | Circuit 15, status | 22D |
| 10 | Visual feedback, actuation | 12C |
| 2 | Child safety lock switch, status | 13E |
| 2 | Child safety lock switch, status | 21E |
| 3 | Power window switch, status | 4E |
| 3 | Power window switch, status | 13E |
| 3 | Power window switch, status | 24F |
| 3 | Power window switch, status | 20E |
| 3 | Power window switch, status | 7E |
| 4 | Power window motor, actuation | 7D |
| 4 | Power window motor, actuation | 17D |
| 4 | Power window motor, actuation | 25D |
| 5 | Hall sensors, signal | 6E |
| 5 | Hall sensors, signal | 16E |
| 5 | Hall sensors, signal | 23E |
| 6 | PRE-SAFE® triggering, request | 11K |
| 6 | PRE-SAFE® triggering, request | 5H |
| 6 | PRE-SAFE® triggering, request | 22H |
| 6 | PRE-SAFE® triggering, request | 15H |
| 7 | Crash, signal | 5H |
| 7 | Crash, signal | 22H |
| 7 | Crash, signal | 8K |
| 7 | Crash, signal | 15H |
| 8 | Outside temperature sensor, signal | 10H |
| 9 | Outside temperature, signal | 22J |
| 9 | Outside temperature, signal | 5J |
| 9 | Outside temperature, signal | 15J |
| B14 | Outside temperature sensor | 12G |
| CAN B | Interior CAN | 12B |
| CAN B | Interior CAN | 6B |
| CAN B | Interior CAN | 14D |
| CAN B | Interior CAN | 20B |
| CAN B | Interior CAN | 19F |
| CAN B | Interior CAN | 11F |
| CAN B | Interior CAN | 6K |
| CAN B | Interior CAN | 12J |
| CAN B | Interior CAN | 20K |
| CAN B | Interior CAN | 12K |
| CAN E | Chassis CAN | 6K |
| CAN E | Chassis CAN | 16K |
| CAN E | Chassis CAN | 26K |
| CAN E1 | Chassis CAN | 16L |
| CAN E1 | Chassis CAN 1 | 16L |
| CAN E1 | Chassis CAN 1 | 26L |
| LIN B5 | Left front door LIN | 12D |
| M10/3 | Left front door power window motor | 17C |
| M10/4 | Right front door power window motor | 8C |
| M10/5 | Left rear door power window motor | 25C |
| M10/6 | Right rear door power window motor | 25C |
| N10/1 | Front SAM control unit with fuse and relay module | 10J |
| N2/10 | Supplemental restraint system control unit | 2K |
| N30/4 | Electronic Stability Program control unit | 28G |
| N30/6 | Regenerative braking system control unit | 30G |
| N30/7 | Premium Electronic Stability Program control unit | 28G |
| N69/1 | Left front door control unit | 14E |
| N69/2 | Right front door control unit | 5E |
| N69/3 | Left rear door control unit | 22E |
| N69/4 | Right rear door control unit | 22E |
| N73 | Electronic ignition switch control unit | 14A |
| S20 | Driver-side power window and outside mirror adjustment switch group | 11B |
| S20s1 | Left front power window switch | 10C |
| S20s2 | Right front power window switch | 10C |
| S20s3 | Left rear power window switch | 10C |
| S20s4 | Right rear power window switch | 10D |
| S20s5 | Rear side window child safety lock switch | 10D |
| S21/2 | Passenger-side power window switch | 2E |
| S21/3 | Left rear power window switch | 25G |
| S21/4 | Right rear power window switch | 25G |
| U165 | Valid for AMG | 27G |
| U203 | Valid without DISTRONIC PLUS | 27F |
| U909 | Valid for DISTRONIC PLUS | 27G |
| U974 | Not valid for full hybrid drive | 27F |
| U974 | Not valid for full hybrid drive | 27G |
| U978 | Valid for full hybrid drive | 29F |
| U986 | Not valid for AMG | 27G |
