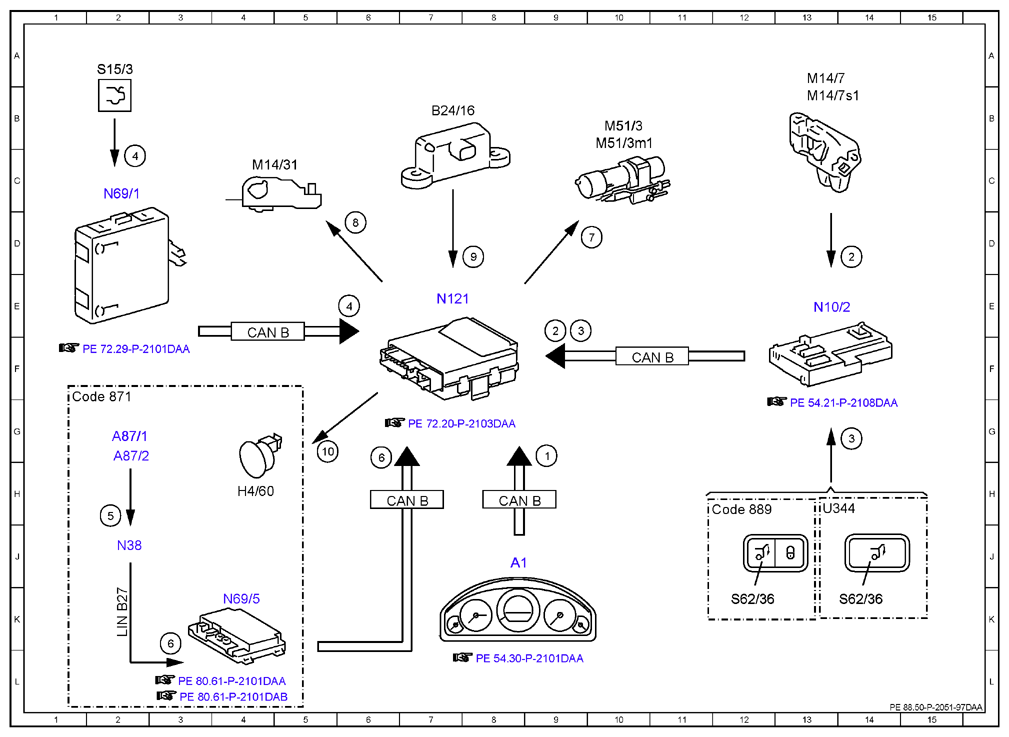

Electrical function schematic for trunk lid control - PE88.50-P-2051-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0 with CODE 881 (Remote trunk closing (RTC [HDFS])) MODEL 212.1 with CODE 881 (Remote trunk closing (RTC [HDFS]))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Vehicle speed, signal | 9G |
| 10 | Warning buzzer, actuation | 5G |
| 2 | Trunk lid rotary tumbler switch, status | 9E |
| 2 | Trunk lid rotary tumbler switch, status | 14D |
| 3 | Trunk lid control button, status | 9E |
| 3 | Trunk lid control button, status | 14G |
| 4 | Driver trunk lid control button, status | 6E |
| 4 | Driver trunk lid control button, status | 2C |
| 5 | Rear switching module sensor, signal | 2H |
| 6 | Close trunk lid, request | |
| 6 | Close trunk lid, request | |
| 7 | Trunk lid control drive unit, actuation | 10D |
| 8 | Trunk lid locking element, actuation | 6D |
| 9 | Trunk lid position sensor, signal | 8D |
| A1 | Instrument cluster | 8J |
| A87/1 | Rear switching module upper sensor | 2G |
| A87/2 | Rear switching module lower sensor | 2G |
| B24/16 | Trunk lid position sensor | 7B |
| CAN B | Interior CAN | 4F |
| CAN B | Interior CAN | 10F |
| CAN B | Interior CAN | 8H |
| CAN B | Interior CAN | 6H |
| Code 871 | Sensor system for trunk lid opening/closing | 1G |
| Code 889 | KEYLESS-GO | 11H |
| H4/60 | Tailgate control warning buzzer | 4H |
| LIN B27 | KEYLESS-GO LIN | 2K |
| M14/31 | Tailgate locking element | 4C |
| M14/7 | Tailgate central locking motor | 13A |
| M14/7s1 | Tailgate rotary tumbler switch | 13B |
| M51/3 | Tailgate control drive unit | 10B |
| M51/3m1 | Tailgate control electric motor | 10B |
| N10/2 | Rear SAM control unit with fuse and relay module | 13E |
| N121 | Trunk lid control control unit | 7E |
| N38 | Rear switching module | 2J |
| N69/1 | Left front door control unit | 2C |
| N69/5 | KEYLESS-GO control unit | 4K |
| S15/3 | Driver trunk lid/liftgate control button | 2A |
| S62/36 | Tailgate control button | 14K |
| S62/36 | Tailgate control button | 12K |
| U344 | Valid for all except KEYLESS GO | 13H |
