Remove/install remote trunk closing control unit - AR88.50-P-5300EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0/1 with CODE 881 (Remote trunk closing (RTC [HDFS]))
| Remove/install | |||
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| 1 | Remove stowage compartment below rear shelf | Remove, install stowage compartment below rear shelf | AR68.50-P-2000-01EW |

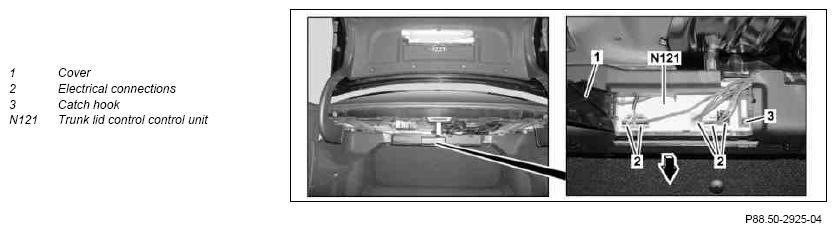

| 2 | Open cover (1) and disconnect electrical connectors (2) | ||
| 3 | Unlock catch hook (3) and remove trunk lid control unit (N121) downward in direction of arrow | ||
| 4 | Install in the reverse order | ||
| 5 | Normalize remote trunk closing | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
