Remove/install remote trunk closing button - AR88.50-P-5075EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0/1 with CODE (881) Remote trunk closing (RTC [HDFS])

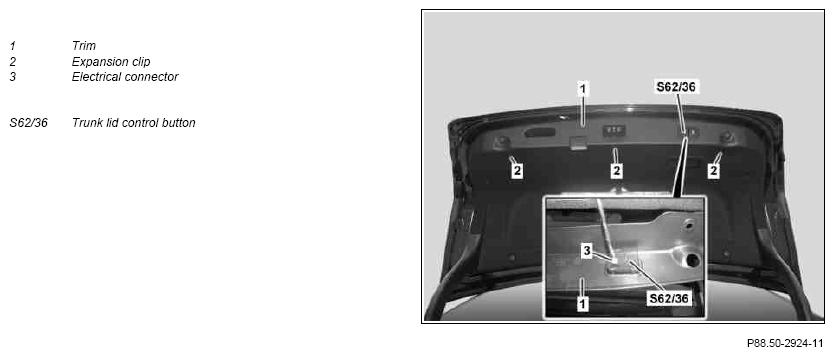

Shown on vehicle with CODE (899) Keyless Go
| Remove/install | |||
| 1 | Remove expansion clips (2), unclip trim (1) and remove | ||
| 2 | Disconnect electrical connector (3) | ||
| 3 | Unclip trunk control button (S62/36) and remove | ||
| 4 | Install in the reverse order |
