Remove/install Mercedes star - AR88.40-P-4050CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212
MODEL 204.0/2/3 without CODE 954 (AVANTGARDE)

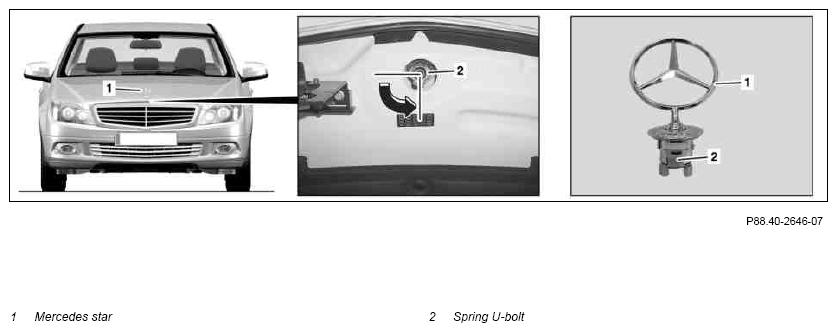

Shown on model 204
| Remove/install | |||
| 1 | Turn spring U-bolt (2) 90° to left in direction of arrow with assembly tool | Fig 2 | |
| 2 | Remove Mercedes star (1) upward | ||
| 3 | Install in the reverse order |
