Retrofit spoiler on longitudinal member paneling - AZ88.30-P-0016EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0 (except 212.074/077) up to 4/13/13, 212.2 (except 212.274/277) up to 4/13/13 up to model year 2014 except CODE 772 (AMG styling package - front spoiler, side skirts and rear apron) except CODE 950 (AMG Sports package) Except vehicles with mud flaps

Shown on model 212.0

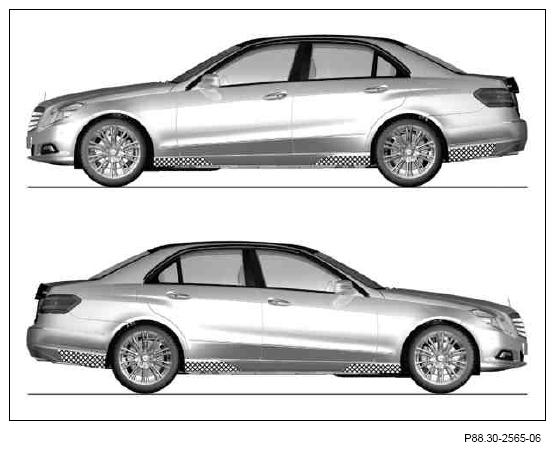

Fig 1: Spoiler - Shown On Model 212.0 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 2: Spoiler - Shown On Model 212.0 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Install
	Risk of explosion caused by paint vapors igniting. Risk of poisoning caused by inhaling paint vapors.	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and skin cream. Ensure that the area is well ventilated.	AS98.00-Z-0002-01A
1	Paint spoiler (1, 2 and 3)		AZ88.30-P-0016-04EW
2	Clean bonding surfaces (crosshatched areas) on both sides of vehicle	Cleaner	*BR00.45-Z-1025-04A
3	Install spoiler (1) at front of longitudinal member		AZ88.30-P-0016-01EW
		When pressing on, the pressure must be applied directly on the adhesive tapes. The maximum adhesive force is reached after approx. 72 hours at 20 °C. Avoid any contact with moisture (e.g. rain, fog, carwash) within the first 24 hours. Prevent any mechanical stress. Do not remove protective foil all at once. To increase processing reliability when installing spoiler (1), conclude by pressing spoiler (1) down on longitudinal member using a clean cotton rag, starting at one side.
4	Install spoiler (2) at rear of longitudinal member		AZ88.30-P-0016-02EW
		When pressing on, the pressure must be applied directly on the adhesive tapes. The maximum adhesive force is reached after approx. 72 hours at 20 °C. Avoid any contact with moisture (e.g. rain, fog, carwash) within the first 24 hours. Prevent any mechanical stress. Do not remove protective foil all at once. To increase processing reliability when installing spoiler (2), conclude by pressing spoiler (2) down on longitudinal member using a clean cotton rag, starting at one side.
5	Install spoiler (3) on rear bumper		AZ88.30-P-0016-03EW
		When pressing on, press directly on adhesive strips to prevent adhesion problems. The maximum adhesive force is reached after approx. 72 hours at 20 °C. Avoid any contact with moisture (e.g. rain, fog, carwash) within the first 24 hours. Prevent any mechanical stress. Do not remove protective foil all at once. To increase processing reliability when installing spoiler (3), conclude by pressing spoiler (3) down on rear bumper using clean cotton rag, starting at one side.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG98	Outer detachable parts	1
