Retrofit AMG rear spoiler - AZ88.50-P-0001-01EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

The assembly is shown on model 204.0.

The vehicle and the rear spoiler should have the same temperature (ambient temperature) when installing to prevent later distortion from various thermal expansion.

The area on the trunk lid to be glued must be free of dust and grease. For cleaning, use mixture of IPA (Isopropanol alcohol) and water with a ratio of 50: 50.

Install rear spoiler (1) on trunk lid (3), position correctly and align.
The rear spoiler (1) should be positioned on the edge of the trunk lid (3) and then slid toward front until the stop can be felt clearly (b). The spoiler should have a uniform gap around the trunk lid (3).

Fig 1: Installing Rear Spoiler On Trunk Lid
Courtesy of MERCEDES-BENZ USA

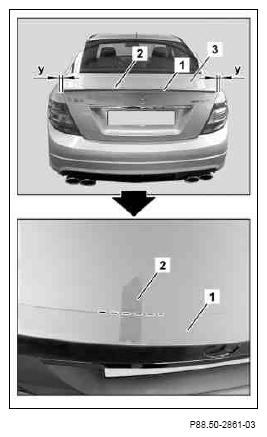

Center rear spoiler (1) on trunk lid (3) and mark position with adhesive tape (TESA-KREPP) (2) on rear spoiler (1) and trunk lid (3).
The distance (y) should be equal on right and left.

Carefully cut adhesive tape (TESA-KREPP) (2) at spoiler edge with suitable tool.

Fig 2: Center Rear Spoiler Mark Position
Courtesy of MERCEDES-BENZ USA

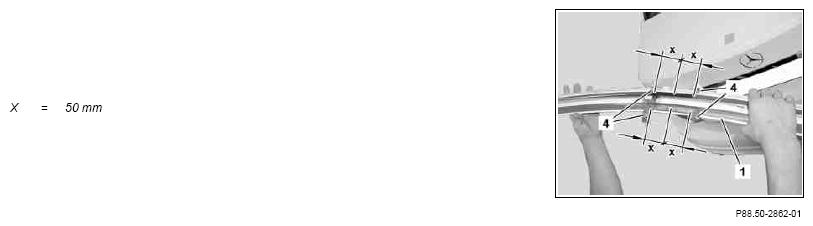

Detach protective foils (4) approx. 50 cm from adhesive tape.
The area on the trunk lid to be glued must be free of dust and grease. For cleaning, use mixture of IPA (Isopropanol alcohol) and water with a ratio of 50: 50.

Fig 3: Detaching Protective Foils
Courtesy of MERCEDES-BENZ USA
Align rear spoiler (1) with adhesive tape (TESA-KREPP) and outer edge of trunk lid (3).
When aligning rear spoiler (1), keep removed foil area away from trunk lid (3), because the adhesive tape can be damaged when detaching the rear spoiler (1) again.
Position rear spoiler (1) on removed foil area and press on firmly.
Check position of rear spoiler (1)!

Fig 4: Rear Spoiler Positioning
Courtesy of MERCEDES-BENZ USA
Pull out protective foil (4) in increments of 15 - 20 cm, first at bottom and at top, starting at center and press on rear spoiler (1).
Check position of rear spoiler (1)!

Fig 5: Pulling Protective Foil
Courtesy of MERCEDES-BENZ USA

Do not pull out protective foil (4) all at once.

Slightly lift rear spoiler (1) in area to be removed to facilitate removal of the protective foil and to prevent it from tearing off.

Fig 6: Protective Foil & Rear Spoiler
Courtesy of MERCEDES-BENZ USA
Firmly press rear spoiler (1) to trunk lid (3) from inside toward outside with clean cotton rag.
Remove air bubbles from adhesive tape.

Fig 7: Pressing Rear Spoiler To Trunk Lid
Courtesy of MERCEDES-BENZ USA
To increase the processing reliability when installing rear spoiler (1), press finally rear spoiler (1) down on trunk lid (3) using a 3M load roller (5), starting at one side.
When pressing on, ensure that the pressure is applied directly on the adhesive tape.

The maximum adhesive force is reached after approx. 72 hours at 20 °C! Avoid any contact with moisture (e.g. rain, fog, carwash) within the first 24 hours. Prevent any mechanical stress.

Fig 8: Installing Rear Spoiler
Courtesy of MERCEDES-BENZ USA
