Converting rear bumper - AZ88.00-P-0001-03EW

MODEL 212.0 up to model year 2013

Check components removed from standard bumper before assembly and replace if damaged.

Carefully lay down painted vehicle parts.

In order to prevent damage.

1. Insert paneling lower section (2) into rear bumper paneling (1) and arrest.

   The lower section of the paneling (2) should arrest correctly in the rear bumper paneling (1).

   Shown on rear bumper paneling on model 207.

   Fig 1: Paneling Lower Section And Rear Bumper Paneling

   Courtesy of MERCEDES-BENZ USA
2. Fasten paneling bottom section (2) on right and left to rear bumper paneling (1) with one blind rivet (19) each.
   Fig 2: Paneling Bottom Section, Rear Bumper Paneling And Blind Rivet

   Courtesy of MERCEDES-BENZ USA
3. Insert center basic carrier (3) into rear bumper paneling (1) and arrest.

   The center basic carrier (3) should arrest properly in the rear bumper paneling (1).

4. Install plates with bolts (4) and sealing washer (5) in center basic carrier (3).
   Fig 3: Rear Bumper Paneling, Center Basic Carrier, Sealing Washer & Bolts

   Courtesy of MERCEDES-BENZ USA
5. Install rear center section shackles (16) on right and left on paneling bottom section (2) and arrest.

   The rear center section shackles (16) should arrest properly in the paneling bottom section (2). The rear center section shackles (16) are marked for the corresponding side and must not be mixed up.

   Fig 4: Rear Center Section Shackles & Paneling Bottom Section

   Courtesy of MERCEDES-BENZ USA

   Vehicles with Parktronic system (PTS) Code 220

6. Insert PTS wiring harness (6) removed from standard bumper into rear bumper paneling (1) and fix in place in specified brackets.
7. Insert outer left, inner left, inner right (A86/2b2) and outer right rear bumper radar sensors, removed from standard bumper, into mounts of rear bumper paneling (1).

   Before inserting sensors, check decoupling rings, replace if damaged.

   Fig 5: PTS Wiring Harness, Rear Bumper Paneling And Radar Sensor

   Courtesy of MERCEDES-BENZ USA

   Vehicles with code (230) Exclusive parking assist

8. Inert rear short range radar sensor units (A86/2) removed from standard bumper with connected NBR cable set (18) into bracket on rear bumper paneling (1) and secure with two fastening brackets (17).
9. Insert NBR cable set (18) into rear bumper paneling (1) and fix in place in brackets present.
   Fig 6: NBR Cable Set, Fastening Brackets And Radar Sensor

   Courtesy of MERCEDES-BENZ USA

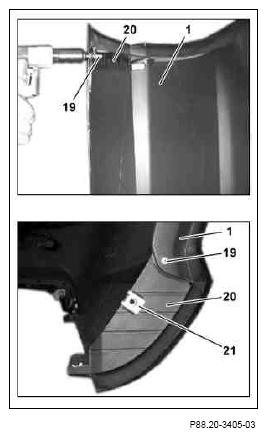

10. Insert reinforcements (20) on right and left into rear bumper paneling (1) and fasten with two blind rivets (19) each.
11. Install one insert clip fastener (21) each on right and left on reinforcements (20).
    Fig 7: Reinforcements, Rear Bumper Paneling, Blind Rivets & Clip Fasteners

    Courtesy of MERCEDES-BENZ USA
12. Install hose clamps (7) on right side of rear bumper paneling (1).
    Fig 8: Rear Bumper Paneling And Hose Clamps

    Courtesy of MERCEDES-BENZ USA
13. Fasten bracket for AGA chrome molding (15) on right and left with three blind rivets (19) each on paneling bottom section (2).
    Fig 9: AGA Chrome Molding Bracket, Rivets And Paneling Bottom Section

    Courtesy of MERCEDES-BENZ USA
14. Fasten bracket for AGA chrome molding (15) on right and left with one disk spring (22) each on rear center section shackles (16).

    Install disk springs (22) on pin from top in pulling direction (z).

    Fig 10: AGA Chrome Molding, Disk Spring, Center Section Shackles & Paneling Bottom Section

    Courtesy of MERCEDES-BENZ USA
15. Install three clip fasteners (21) each on left and right on bracket for AGA chrome molding (15).
    Fig 11: AGA Chrome Molding Clip Fasteners

    Courtesy of MERCEDES-BENZ USA
16. Install AGA chrome molding (10) with three stainless steel bolts (12) and three washers (13) each and right and left on bracket for AGA chrome molding (15).

    Tighten stainless steel bolts (12) in sequence shown (a, b, c).

17. Hook check strap on towing eye cover into rear bumper paneling (1) and insert towing eye cover.

    The towing eye cover should arrest correctly in the rear bumper paneling (1).

    Fig 12: AGA Chrome Molding Stainless Steel Bolts Tightening Sequence

    Courtesy of MERCEDES-BENZ USA
