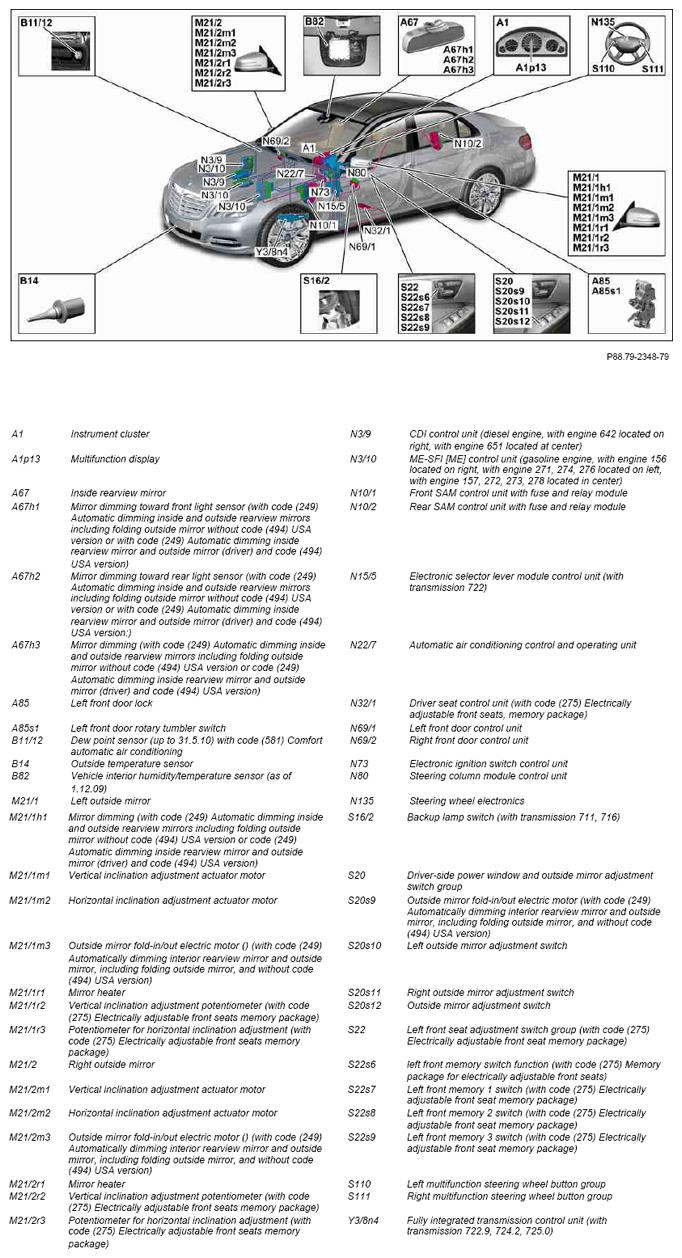

Overview of system components for electric mirror - GF88.79-P-9996FL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212
Shown on model 212.0
| Component description for instrument cluster | A1 | GF54.30-P-6000FL | |
| Component description for CDI control unit | MODEL 212 with ENGINE 642.8 N3/9 |
GF07.16-P-6000OG | |
| MODEL 212.098/298 with ENGINE 651.924 up to model year 2014 N3/9 |
GF07.16-P-6000OLH | ||
| MODEL 212 (except 212.098/298) with ENGINE 651.9 N3/9 |
GF07.16-P-6000OM | ||
| MODEL 212.098/298 with ENGINE 651.924 as of model year 2014 N3/9 |
GF07.16-P-6000OLI | ||
| MODEL 212 (except 212.098/298) with ENGINE 651.9 as of 9/1/13 with CODE 494 (US version) Bosch N3/9 |
GF07.16-P-6000OMD | ||
| Component description for ME-SFI (ME) control unit | MODEL 212 with ENGINE 156.9 N3/10 |
GF07.61-P-6000MAW | |
| MODEL 212 with ENGINE 271.8 N3/10 |
GF07.61-P-6000MG | ||
| MODEL 212.041 with ENGINE 271.958 with CODE 924 (Bivalent natural gas drive) N3/10 |
GF07.61-P-6000MFG | ||
| MODEL 212 with ENGINE 272.9 (except 272.98) N3/10 |
GF07.61-P-6000MI | ||
| MODEL 212 with ENGINE 272.983 N3/10 |
GF07.61-P-6000MIE | ||
| MODEL 212 with ENGINE 273.9 N3/10 |
GF07.61-P-6000ML | ||
| MODEL 212 with ENGINE 274.9 with CODE 924 (Bivalent natural gas drive) N3/10 |
GF07.61-P-6000MRC | ||
| MODEL 212 with ENGINE 274.9 without CODE 924 (Bivalent natural gas drive) N3/10 |
GF07.61-P-6000MRB | ||
| MODEL 212.095 with ENGINE 276.9 N3/10 |
GF07.61-P-6000MMO | ||
| MODEL 212 (except 212.095) with ENGINE 276.9 N3/10 |
GF07.61-P-6000MM | ||
| MODEL 212 with ENGINE 157.9 MODEL 212 with ENGINE 278.9 N3/10 |
GF07.61-P-6000MMA | ||
| MODEL 212 with ENGINE 276.8 as of model year 2014 N3/10 |
GF07.61-P-6000MMP | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FL | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030FL | |
| Component description for electronic selector lever module control unit | MODEL 212.0 (except 212.041) with TRANSMISSION 722.6 up to model year 2012MODEL 212.041 with TRANSMISSION 722.6 MODEL 212.2 with TRANSMISSION 722.6 up to model year 2012 N15/5 |
GF27.60-P-5163ACL | |
| Component description for automatic air conditioning control and operating unit | MODEL 212 without CODE 581 (Comfort automatic air conditioning) N22/7 |
GF83.40-P-3000FLA | |
| MODEL 212 with CODE 581 (Comfort automatic air conditioning) N22/7 |
GF83.40-P-3000FLB | ||
| Component description for driver seat control unit | MODEL 212 with CODE 275 (Electrically adjustable front seats memory package) N32/1 |
GF91.29-P-5231FL | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FL | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FL | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FL | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051FL | |
| Component description for fully integrated transmission control unit | MODEL 212 with TRANSMISSION 722.9 (except 722.930/931) Y3/8n4 |
GF27.60-P-5165AHL | |
| MODEL 212.0/2 with TRANSMISSION 722.930 up to 5/31/11, 722.931 as of 6/1/11 Y3/8n4 |
GF27.60-P-5165AHX | ||
| MODEL 212 with TRANSMISSION 724.2 Y3/8n4 |
GF27.60-P-5165AHO | ||
| MODEL 212 with TRANSMISSION 725.0 Y3/8n4 |
GF27.60-P-5165ANA | ||
| Table of contents for function description of electric mirrors | GF88.79-P-0996FL |
