Remove/install radio operating unit - AR82.60-P-7503EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0 (except 212.074/077), 212.1, 212.2 (except 212.274/277) with CODE 279 (Electronic gear selector)
Shown up to model year 2014
Shown as of model year 2014
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of Audio/COMAND control panel (A40/9) | When replacing the Audio/COMAND control panel (A40/9). | |
| AD00.00-P-2000-04A | |||
| 2 | Remove left and right cover (1) and center cover (7) | AR68.20-P-2350EW | |

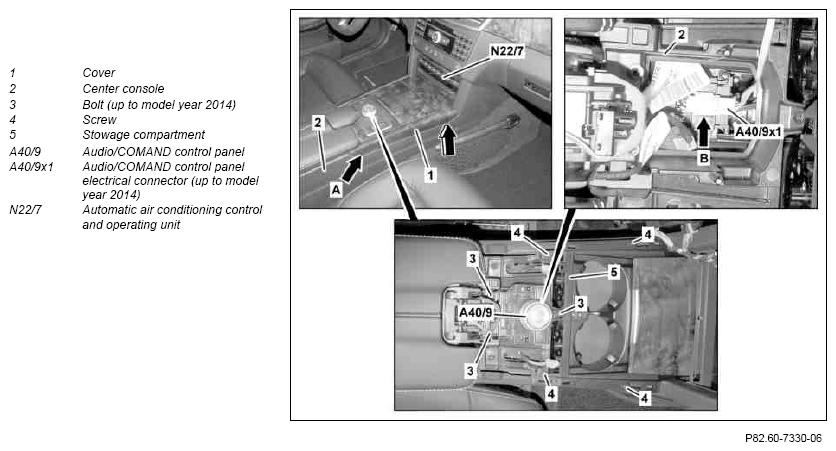

| 3 | Remove screws/bolts (4) and detach stowage compartment (5) | MODEL 212.0 (except 212.074/077), 212.1, 212.2 (except 212.274/277) up to model year 2014 with CODE 279 (Electronic gear selector) |
|
| 4.1 | Remove screws/bolts (3) | MODEL 212.0 (except 212.074/077), 212.1, 212.2 (except 212.274/277) up to model year 2014 with CODE 279 (Electronic gear selector) |
|

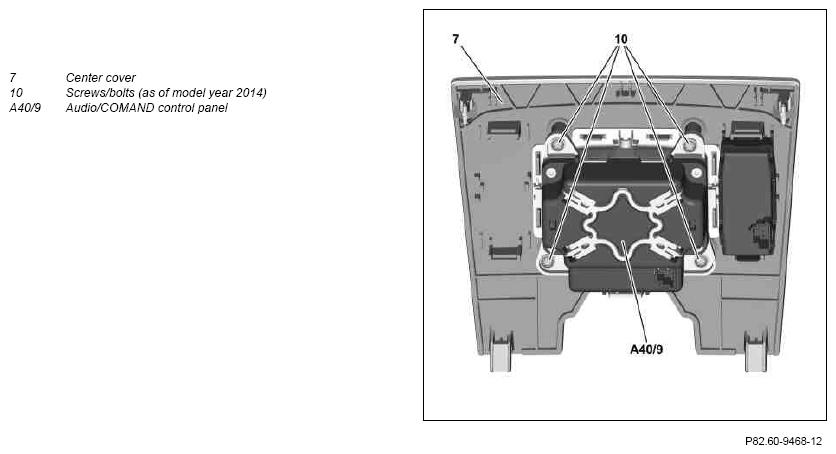

| 4.2 | Remove screws/bolts (10) | MODEL 212.0 (except 212.074/077), 212.1, 212.2 (except 212.274/277) as of model year 2014 with CODE 279 (Electronic gear selector) |
|
| 5 | Raise stowage compartment (5) at front and take out Audio/COMAND control panel (A40/9) far enough until the Audio/COMAND control panel electrical connection (A40/9x1) is accessible | MODEL 212.0 (except 212.074/077), 212.1, 212.2 (except 212.274/277) up to model year 2014 with CODE 279 (Electronic gear selector) |
|
| 6 | Unclip Audio/COMAND control panel electrical connection (A40/9x1) from center console (2) and disconnect | MODEL 212.0 (except 212.074/077), 212.1, 212.2 (except 212.274/277) up to model year 2014 with CODE 279 (Electronic gear selector) |
|
| 7 | Remove Audio/COMAND control panel (A40/9) | ||
| 8 | Install in the reverse order |
