Remove/install loudspeaker amplifier control unit - AR82.62-P-7720EWM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0/1 as of model year 2014 with CODE 811 (Advanced sound system)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Remove/install | |||
| 1 | Connect diagnostic system and conduct initial startup of sound system amplifier control unit (N40/3) and rear bass speaker amplifier (N40/9) | When replacing sound system amplifier control unit (N40/3) and rear bass speaker amplifier (N40/9). | |
| AD00.00-P-2000-04A | |||
| 2.1 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | Except CODE 889 (Keyless-Go) | |
| 2.2 | Switch off ignition and remove Keyless-Go start/stop button from electronic ignition lock control unit | With CODE 889 (Keyless-Go) | |

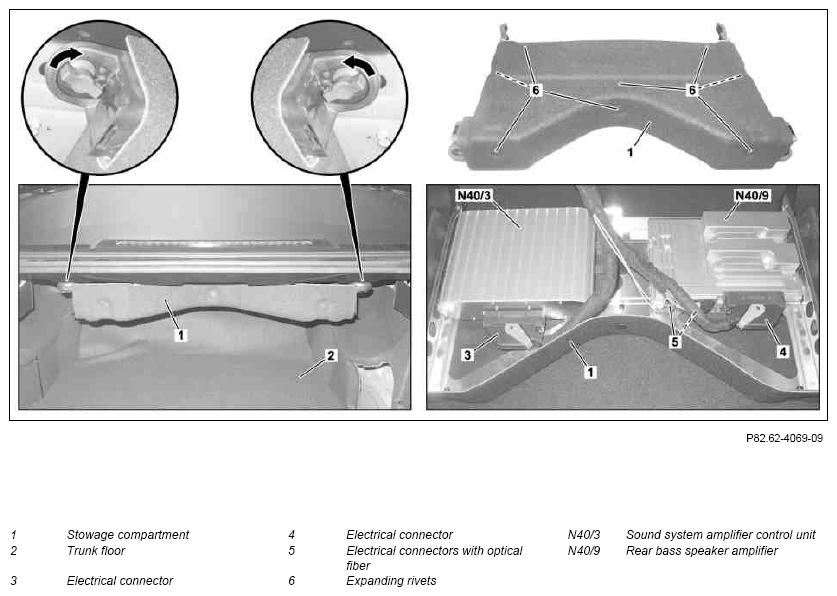

| 3 | Release stowage compartment (1) (arrows) and place downwards on trunk floor (2) | Otherwise the sound system amplifier control unit (N40/3) and rear bass speaker amplifier (N40/9) may be damaged. |
|
| 4 | Detach electrical connections (3, 4) | ||
| 5 | Disconnect electrical connectors with optical fiber (5) | ||
| 6 | Remove expansion rivets (6) | When removing sound system amplifier control unit (N40/3). | |

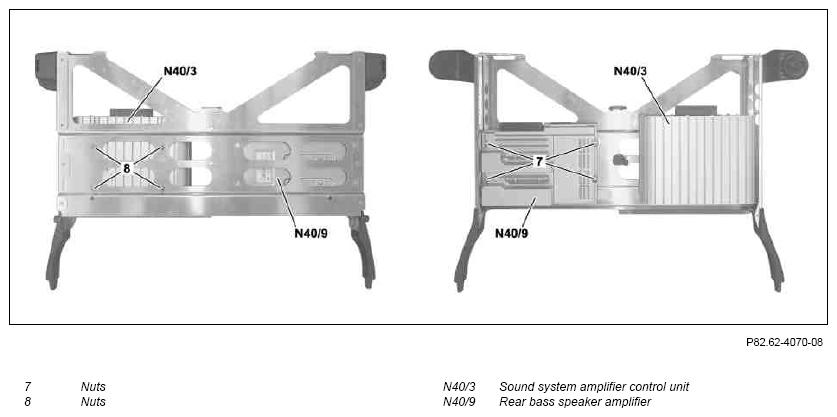

| 7 | Remove nuts (7) | When removing rear bass speaker amplifier (N40/9). | |
| 8 | Remove nuts (8) | When removing sound system amplifier control unit (N40/3). | |
| 9 | Remove sound system amplifier control unit (N40/3) or rear bass speaker amplifier (N40/9) | ||
| 10 | Install in the reverse order |
