Remove/install fog lamp - AR82.10-P-5103CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204 (except 204.077/277/377)
MODEL 207
MODEL 212 (except 212.077/277)

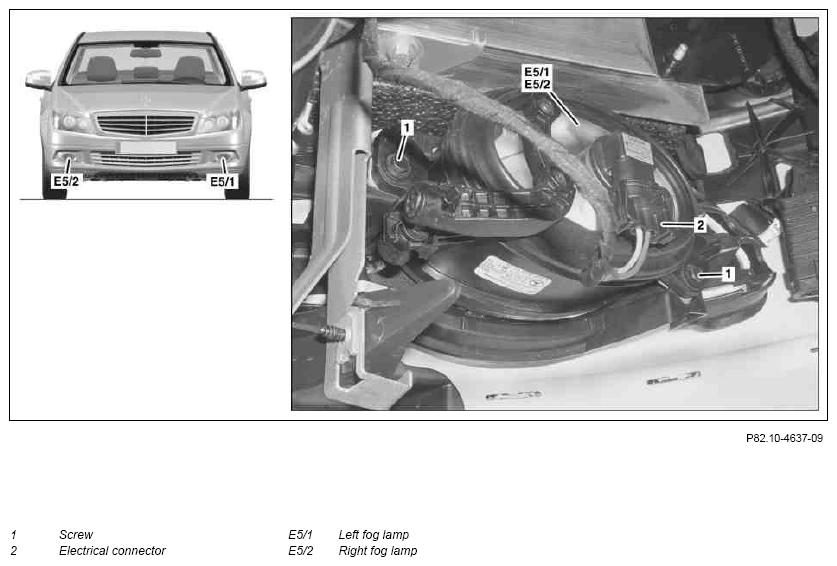

Shown on model 204.0, up to 28.02.2011, on right side of vehicle

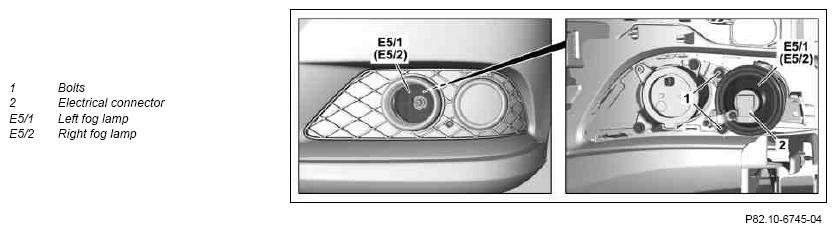

Shown on model 204.0 as of 1.03.2011, on left side of vehicle
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle with vehicle lift | ||
| 2 | Remove engine compartment paneling at front | MODEL 204.0 (except 204.077), 204.2 (except 204.277), 204.3 (except 204.377) When removing left front fog lamp (E5/1). |
|
| 3 | Remove front engine compartment paneling | When removing left front fog lamp (E5/1). | |
| MODEL 204.9 | AR61.20-P-1105CY | ||
| 4 | Detach left fender liner in area of bumper and lift out using assembly wedge until left front fog lamp (E5/1) can be removed | MODEL 204.0 (except 204.077), 204.2 (except 204.277), 204.3 (except 204.377) MODEL 207 MODEL 212 (except 212.077/277) When removing left front fog lamp (E5/1). |
|
| Figure | |||
| 5 | Detach right fender liner in area of bumper and lift out using assembly wedge until right front fog lamp (E5/2) can be removed | When removing right front fog lamp (E5/2). | |
| Figure | |||
| 6 | Disconnect electrical connector (2) | ||
| 7 | Remove screws/bolts (1) and remove left front fog lamp (E51) or right front fog lamp (E52) from bumper | ||
| 8 | Install in the reverse order | ||
| 9 | Check adjustment of left front fog lamp (E5/1) and right front fog lamp (E5/2), correct if necessary | ||
| Check and correct the adjustment of the headlamps | MODEL 204 (except 204.077/277/377) | AP82.10-P-8260CW | |
| Check and correct the adjustment of the headlamps | MODEL 207 MODEL 212 (except 212.077/277) |
AP82.10-P-8260EW |
