Remove/install display in rear - AR82.60-P-7720SXS
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166, 212 with CODE (864) Rear entertainment system
MODEL 221.0/1 as of 1.6.09 with CODE (864) Rear entertainment system
MODEL 221.0/1 with CODE (864) Rear entertainment system with CODE (800) Model year 2010
Shown on model 212
Shown on model 221
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Buffer basic data of rear entertainment system in STAR DIAGNOSIS | When replacing the left rear display (A40/5) or the right rear display (A40/6). |
AD00.00-P-2000-04A |
| 2.1 | Move head restraint (1) on front seat up | Model 166, 212 | |
| 2.2 | Remove front seat head restraint (1) | Model 221 | AR91.16-P-0040SX |
| 3 | Unclip bezel (2) (arrows) | ||
| Figure | |||
| 4 | Remove screws/bolts (3) | ||
| 5 | Disconnect electrical connectors (4) | ||

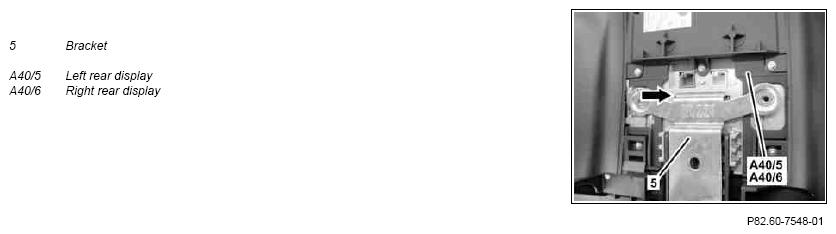

| 6 | Remove left rear display (A40/5) or right rear display (A40/6) | In models 166, 212 the bracket (5) is hooked into the left rear display (A40/5) or right rear display (A40/6) (arrow). With model 221 the bracket (5) is placed onto the left rear display (A40/5) or right rear display (A40/6) (arrow). |
|
| 7 | Install in the reverse order |
