Remove/install antenna amplifier module - AR82.62-P-8300EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0/1, 218.3
With code (863) Digital/analog TV tuner, shown on model 212.0
| Remove/install | |||

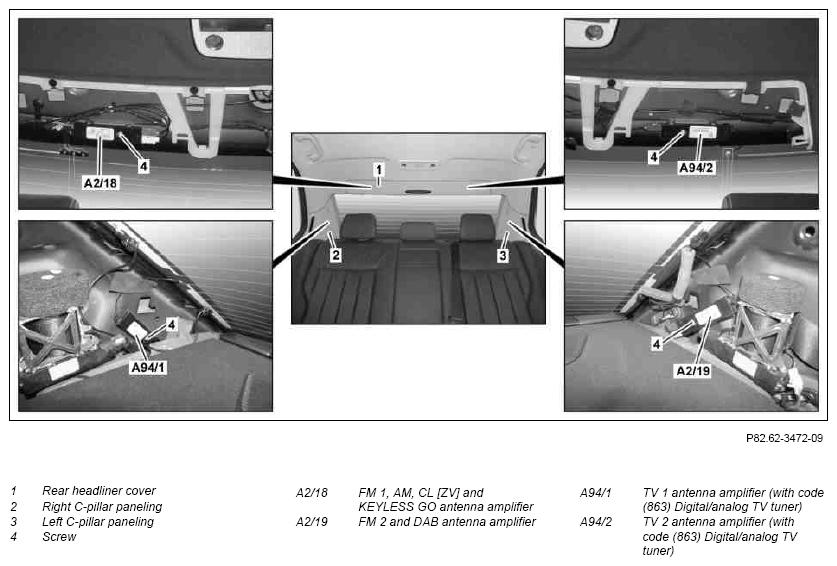

| 1 | Unclip rear headliner cover (1) and remove | When removing TV 1 AM, ZV and KEYLESS-GO antenna amplifier (A2/18) or TV 2 antenna amplifier (A94/2) on vehicles with code (863) Digital/analog TV tuner. | |
| 2 | Remove right C-pillar paneling (2) | When removing TV 1 antenna amplifier (A94/1) on vehicles with code (863) Digital/analog TV tuner. | |
| Model 212.0/1 | AR68.30-P-4490EW | ||
| Model 218.3 | AR68.30-P-4490EL | ||
| 3 | Remove left C-pillar paneling (3) | When removing FM 2 and DAB antenna amplifier (A2/19). | |
| Model 212.0/1 | AR68.30-P-4490EW | ||
| Model 218.3 | AR68.30-P-4490EL | ||

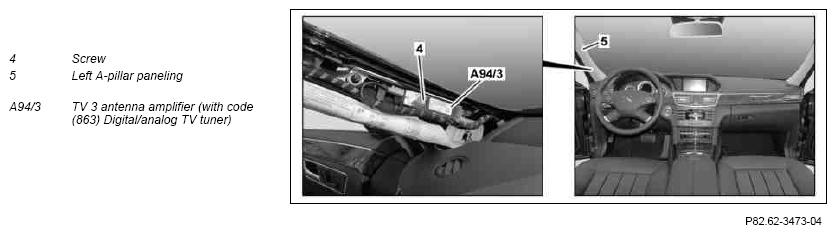

| 4 | Remove left A-pillar paneling (5) | When removing TV 3 antenna amplifier (A94/3) on vehicles with code (863) Digital/analog TV tuner. | |
| 5 | Unscrew bolt (4) from antenna amplifier (A2/18, A2/19, A94/1, A94/2 or A94/3) | The bolt (4) remains in the antenna amplifier (A2/18, A2/19, A94/1, A94/2 or A94/3). | |
| 6 | Remove antenna amplifier (A2/18, A2/19, A94/1, A94/2 or A94/3) until the electrical connectors are accessible | ||
| 7 | Disconnect electrical connectors from antenna amplifier (A2/18, A2/19, A94/1, A94/2 or A94/3) and remove antenna amplifier (A2/18, A2/19, A94/1, A94/2 or A94/3) | ||
| 8 | Install in the reverse order |
