Remove/install DVD player - AR82.60-P-7505EX

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0 with CODE (864) Rear entertainment system with CODE (224) Design individual rear seat system

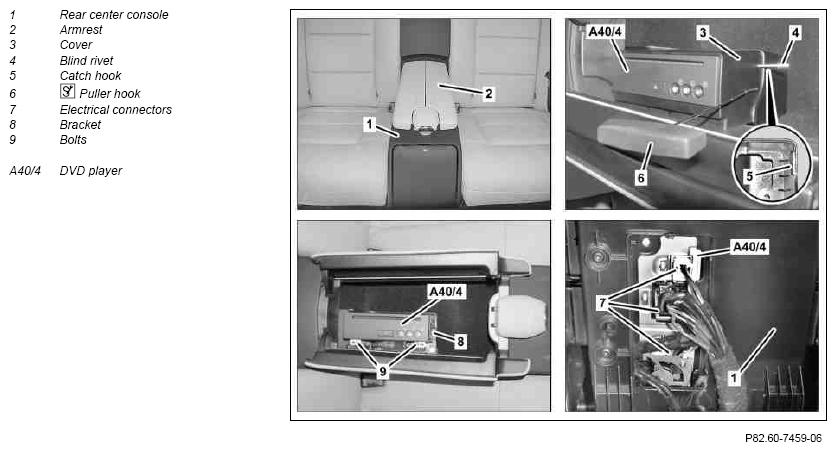

Fig 1: DVD Player Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Buffer basic data of rear entertainment system in STAR DIAGNOSIS	When replacing the DVD player (A40/4). Transfer buffered basic data to rear entertainment system.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
2	Open armrest (2).
3	Release front catch hook (5) and remove cover (3) using extraction hook (6) upwards	The unlocking of the catch hook (5) is shown here by way of an example with a blind rivet (4) of approx. 2 mm. It is also possible to use other suitable tools or objects with a diameter of approx. 2 mm.
			Figure
4	Detach rear center console (1) and lift up until the electrical connectors (7) are accessible		AR68.20-P-2020EW
5	Disconnect electrical connectors (7)
6	Remove bolts (9)
7	Pull DVD player (A40/4) upwards and out of the bracket (8)
8	Install in the reverse order

Fig 2: Identifying Pulling Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
