Remove/install Bluetooth antenna - AR82.62-P-8980CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204, 207, 212 with CODE 510 (Audio 20 CD with CD changer)

MODEL 204, 207, 212 with CODE 511 (Audio 50 APS with DVD changer)

MODEL 204, 207, 212 with CODE 512 (COMAND APS with DVD changer)

MODEL 204, 207, 212 with CODE 523 (MB Audio 20 radio)

MODEL 204, 207, 212 with CODE 525 (MB Audio 50 APS radio)

MODEL 204, 207, 212 with CODE 527 (COMAND APS with single DVD drive (with navigation))

MODEL 218 up to model year 2015 with CODE 510 (Audio 20 CD with CD changer)

MODEL 218 up to model year 2015 with CODE 511 (Audio 50 APS with DVD changer)

MODEL 218 up to model year 2015 with CODE 512 (COMAND APS with DVD changer)

MODEL 218 up to model year 2015 with CODE 523 (MB Audio 20 radio)

MODEL 218 up to model year 2015 with CODE 525 (MB Audio 50 APS radio)

MODEL 218 up to model year 2015 with CODE 527 (COMAND APS with single DVD drive (with navigation))

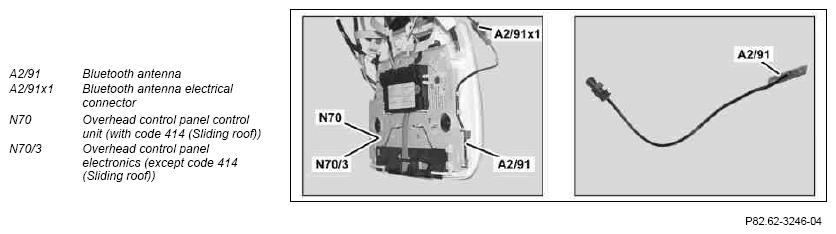

Fig 1: Bluetooth Antenna Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove overhead control panel control unit (N70) or overhead control panel electronics (N70/3) from headliner and let hang with electrical lines still connected		AR82.20-P-1000CW
2	Disconnect Bluetooth antenna electrical connector (A2/91x1)
3	Unclip Bluetooth antenna (A2/91) from overhead control panel control unit (N70) or overhead control panel electronics (N70/3) and remove	Take care when unclipping Bluetooth antenna (A2/91). Otherwise there is a risk of breaking the Bluetooth antenna (A2/91).
4	Install in the reverse order
