Prepare body for bonding - AR82.70-P-8952-01EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 117.3
MODEL 166, 172.4, 218
MODEL 212.0/2
MODEL 222
MODEL 292
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1012-07A | Primer stick | A 000 986 27 50 |
| BR00.45-Z-1135-02A | Repair kit, windshield glazing, 1-component adhesive | A 221 670 81 01 |
In the event of damage, the bonding area on the body may only be repaired by using a primer stick, and it must be absolutely free of dust and grease.
Otherwise, paint adhesion problems may arise during adhesive bonding.
- Cut back any adhesive residue on the body using a suitable scraping tool, and remove any loose adhesive material.
Carefully cut back adhesive residue.
Otherwise the paint can be damaged.

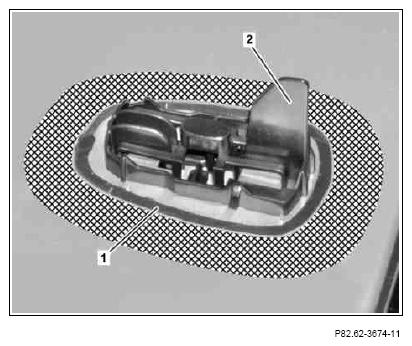

- Clean bonding area (1) on body using the cleaning cloth included in the repair kit for installing windshields, 1-component adhesive and afterwipe with dry cloth.
- Touch up paint damage in bonding area (1) with primer stick.
