Apply adhesive material to cover - AR82.70-P-8952-03EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 117.3

MODEL 166, 172.4, 218

MODEL 212.0/2

MODEL 222

MODEL 292

Fig 1: Identifying Adapter (000 589 86 63 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1135-02A	Repair kit, windshield glazing, 1-component adhesive	A 221 670 81 01

Clean bonding area on cover (1) with the cleaning cloth included in the repair kit for installing windshields, 1-component adhesive and afterwipe with dry cloth.
The bonding area on the cover (1) must be absolutely free of dust and grease. Otherwise the adhesive force of the glue starts to decrease.

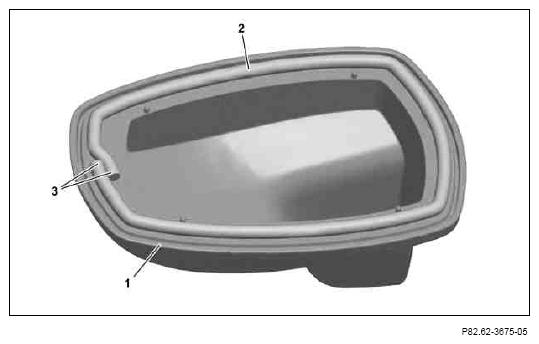

Fig 2: Repair Kit Cover And Adhesive Applying Area
Courtesy of MERCEDES-BENZ USA
Center application nozzle over flange of cover (1) and evenly apply adhesive material in the process.
The adhesive bead (2) must have a diameter of 4 mm, it must not exhibit any discontinuities and it must be applied in the front area with an overlap (3) of approx. 10 mm. Otherwise leaktightness and strength are not assured.
Completely press adhesive residues not required out of cartridge using adapter and dispose of.
Adapter is inserted between cartridge piston and plate on push rod of cartridge gun.

The cover (1) must be mounted onto the body within a period of 5 minutes after applying the adhesive material.

Otherwise the adhesive force of the glue starts to decrease.
