Adjusting wiper system - AR82.30-P-6400-01CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204, 207, 212, 217, 218, 222

TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 204 Model 207
BE82.30-P-1003-01M Angle of incidence of driver-side wiper arm in parked position Left-hand drive vehicle ∠° +3, 0...+7, 0 +3, 0...+7, 0
Right-hand drive vehicle ∠° -3, 0...-7, 0 -3, 0...-7, 0
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 212 Model 217
BE82.30-P-1003-01M Angle of incidence of driver-side wiper arm in parked position Left-hand drive vehicle ∠° +3, 0...+7, 0 +3, 6...+5, 4
Right-hand drive vehicle ∠° -3, 0...-7, 0 -3, 6...-5, 4
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 218 Model 222
BE82.30-P-1003-01M Angle of incidence of driver-side wiper arm in parked position Left-hand drive vehicle ∠° +3, 0...+7, 0 +3, 6...+5, 4
Right-hand drive vehicle ∠° -3, 0...-7, 0 -3, 6...-5, 4
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 204 Model 207
BE82.30-P-1004-01M Angle of incidence of passenger-side wiper arm in parked position Left-hand drive vehicle ∠° +3, 0...+7, 0 +3, 0...+7, 0
Right-hand drive vehicle ∠° -3, 0...-7, 0 -3, 0...-7, 0
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 212 Model 217
BE82.30-P-1004-01M Angle of incidence of passenger-side wiper arm in parked position Left-hand drive vehicle ∠° +3, 0...+7, 0 +3, 4...+5, 6
Right-hand drive vehicle ∠° -3, 0...-7, 0 -3, 4...-5, 6
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 218 Model 222
BE82.30-P-1004-01M Angle of incidence of passenger-side wiper arm in parked position Left-hand drive vehicle ∠° +3, 0...+7, 0 +3, 4...+5, 6
Right-hand drive vehicle ∠° -3, 0...-7, 0 -3, 4...-5, 6
WINDSHIELD WIPER

Number Designation Model 217 Model 222
BA82.30-P-1001-01P Screw/bolt, windshield wiper system to body M8 Nm 11 11
WINDSHIELD WIPER

Number Designation Model 204 Model 207
BA82.30-P-1004-01M Screw/bolt, windshield wiper system bracket to partition wall Nm 11 11
WINDSHIELD WIPER

Number Designation Model 212 Model 218
BA82.30-P-1004-01M Screw/bolt, windshield wiper system bracket to partition wall Nm 11 11
Fig 1: Identifying Adapter (211 589 05 21 00)
G10241719Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Extraction Hook (140 589 02 33 00)
G10241720Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Adjusting Tool Set (211 589 02 21 00)
G10241721Courtesy of MERCEDES-BENZ USA

IMPORTANT The windshield wiper system may only be adjusted if the check values of both wiper arms deviate from the tolerance range in parked position.

The following adjustment procedure is shown on model 204.0.

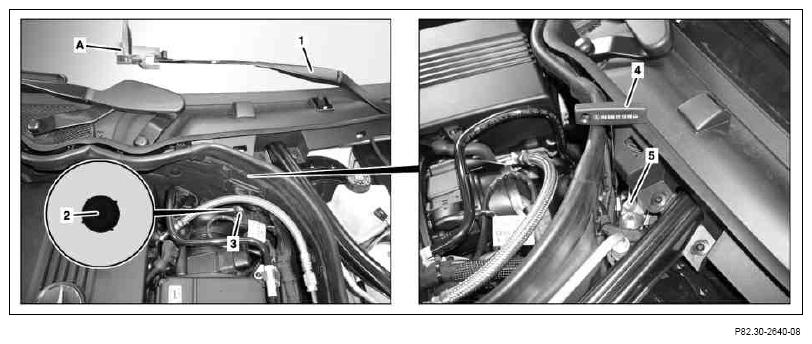

Fig 4: Driver-Side Wiper Arm, Extraction Hook And Windshield Wiper System
G10241722Courtesy of MERCEDES-BENZ USA
  1. Fit angle gauge (A) from SPECIAL TOOL adjustment tool set to driver-side wiper arm (1).

    IMPORTANT Model 217, 222

    On wiper arms without  Toplock system, the adapter from the SPECIAL TOOL adjustment tool set must be used.

    IMPORTANT Model 204, 207, 212, 218

    On wiper arms with  Toplock system, the separate SPECIAL TOOL adapter must be used.

  2. Open hood.

    IMPORTANT Model 217, 218, 222

    Do not move engine hood to upright position.

  3. Remove cover (2) from insulation mat.

    IMPORTANT Model 204

    The cover (2) is a discontinued part.

  4. Model 212, 217, 218, 222

    Remove sealing frame in area of screw (3), remove cover above screw (3) and lift insulation mat far enough to allow access to the screw (3).

  5. Loosen screw/bolt (3) and attach SPECIAL TOOL extraction hook (4) to windshield wiper system (5).
  6. Move windshield wiper system (5) using SPECIAL TOOL extraction hook (4) until the correct adjustment value appears on the scale of the angle gage (A).
  7. Tighten screw (3) and SPECIAL TOOL remove extraction hook (4).
  8. Close hood and remove angle gage (A) from driver-side wiper arm (1).
